Dell P170ST - Back View; Side View

Dell P170S/P190S Flat Panel Monitor User's Guide
file:///S|/SSA_Proposal/P170S_P190S/UG/about.htm[7/8/2011 4:49:51 PM]

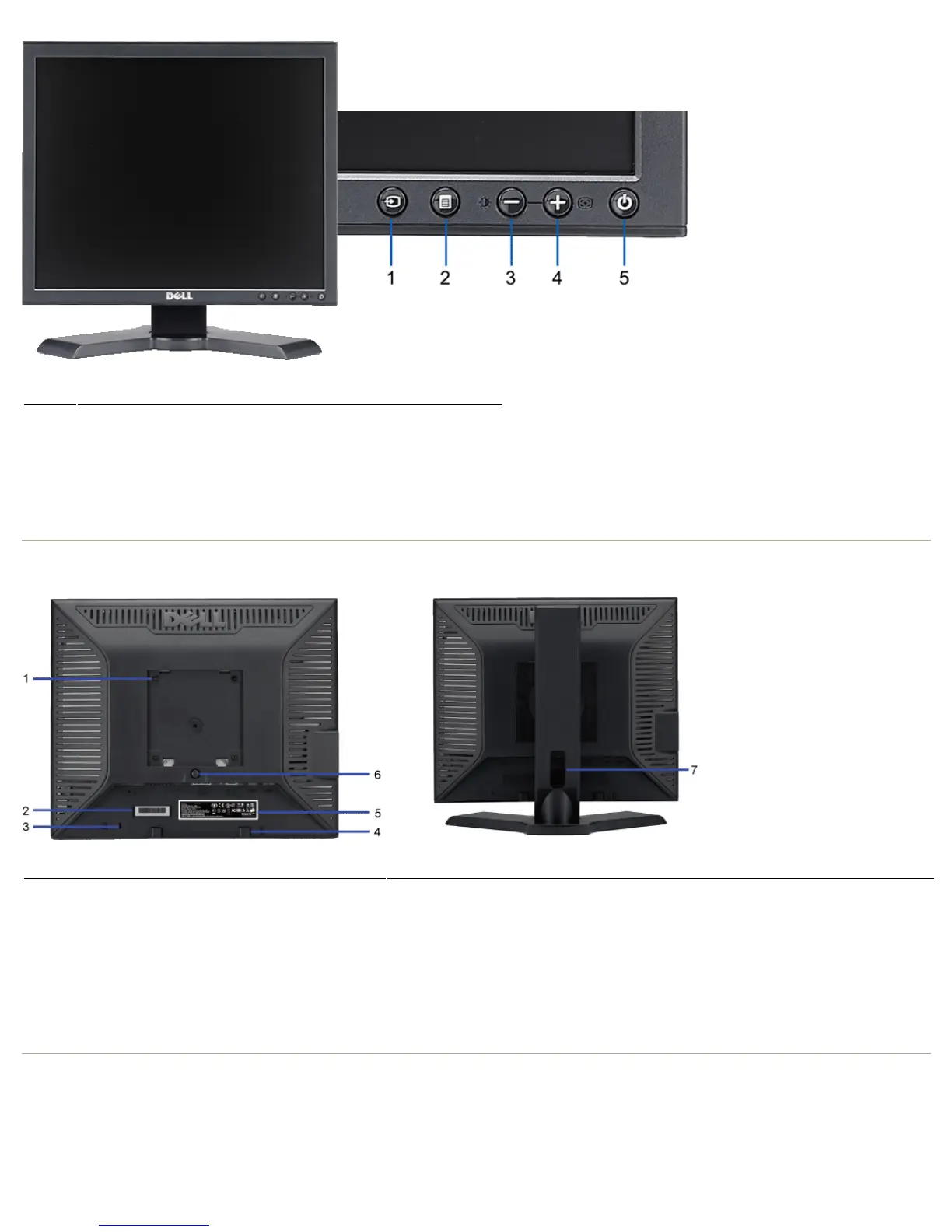

Front View Front panel controls
Label Description
1 Video input select
2 OSD menu / select button
3 Brightness & Contrast / Down (-) button
4 Auto-Adjust / Up (+) button
5 Power button (with power light indicator)
Back View
Back view
Label Description/Use
1
VESA mounting holes (100mm)
(behind attached VESA Plate)
Use to mount the monitor.
2 Barcode serial number label Refer to this label if you need to contact Dell for technical support.
3 Security lock slot Use a security lock with the slot to help secure your monitor.
4 Dell Soundbar mounting brackets Attach the optional Dell Soundbar.
5 Regulatory rating label Lists the regulatory approvals.
6 Stand removal button Press to release the stand.
7 Cable management slot Help organize cables by placing them through the slot.
Side View
