16 About Your Monitor
USB
This section gives you information about the USB ports available on your monitor.
Your computer has the following USB ports:
• One USB 3.0 upstream port — back
• Two USB 2.0 downstream ports — back
• Two USB 3.0 downstream ports — left side
NOTE: USB 3.0 functionality requires a USB 3.0 compatible computer.
NOTE: The monitor’s USB ports work only when the monitor is on or in the power
save mode. If you turn off the monitor and then turn it on, the attached peripherals
may take a few seconds to resume normal functionality.
Transfer speed Data rate Power consumption
SuperSpeed 5 Gbps 4.5 W (Max., each port)
Hi-Speed 480 Mbps 2.5 W (Max., each port)
Full speed 12 Mbps 2.5 W (Max., each port)

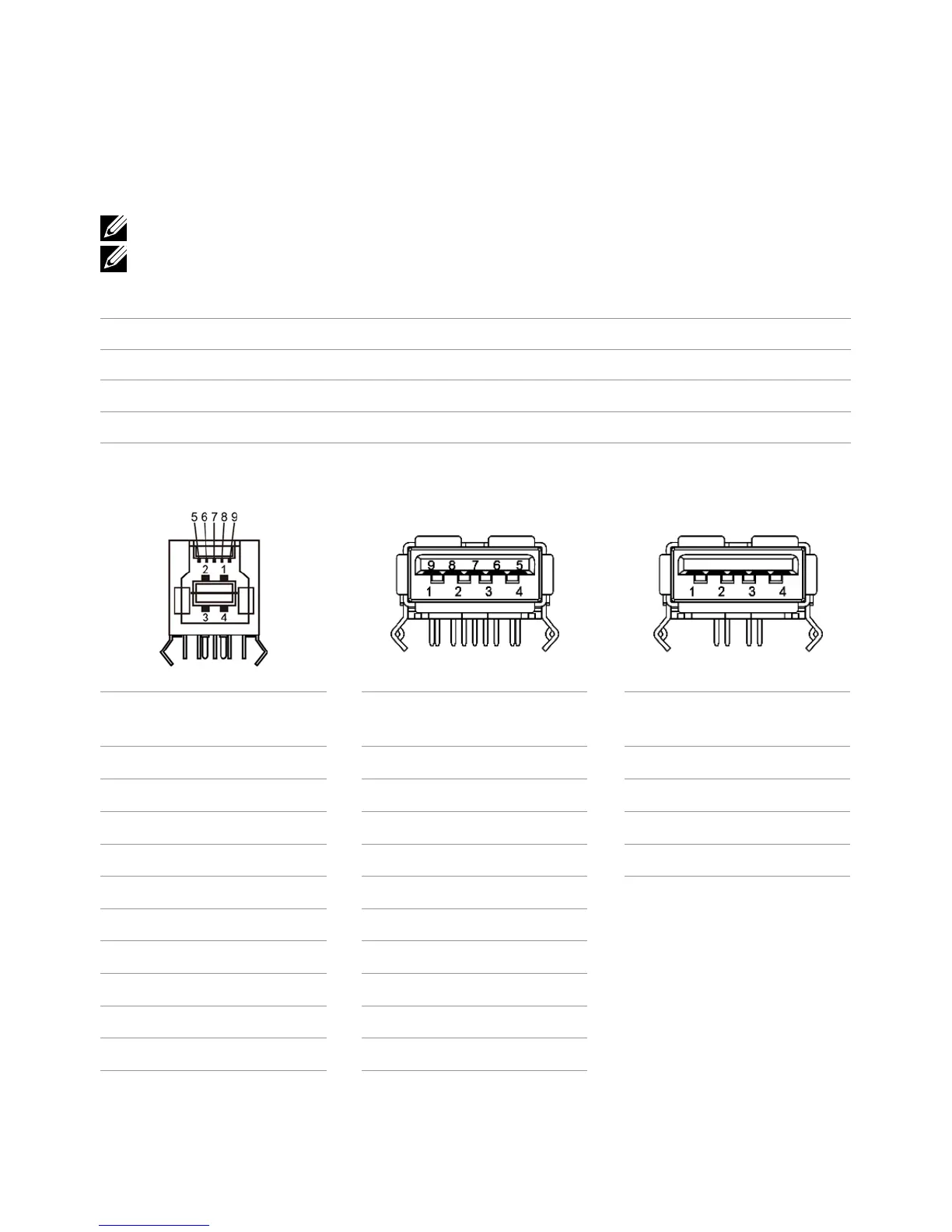

USB upstream port USB 3.0
downstreamport
USB 2.0
downstreamport
Pin
number
Signal
name
Pin
number
Signal
name
Pin
number
Signal
name
1 VBUS 1 VBUS 1 VCC
2 D- 2 D- 2 DMD
3 D+ 3 D+ 3 DPD
4 GND 4 GND 4 GND
5 StdB_SSTX- 5 StdA_SSRX-
6 StdB_SSTX+ 6 StdA_SSRX+
7 GND_DRAIN 7 GND_DRAIN
8 StdB_SSRX- 8 StdA_SSTX-
9 StdB_SSRX+ 9 StdA_SSTX+
Shell Shield Shell Shield
