20 Setting Up the Monitor

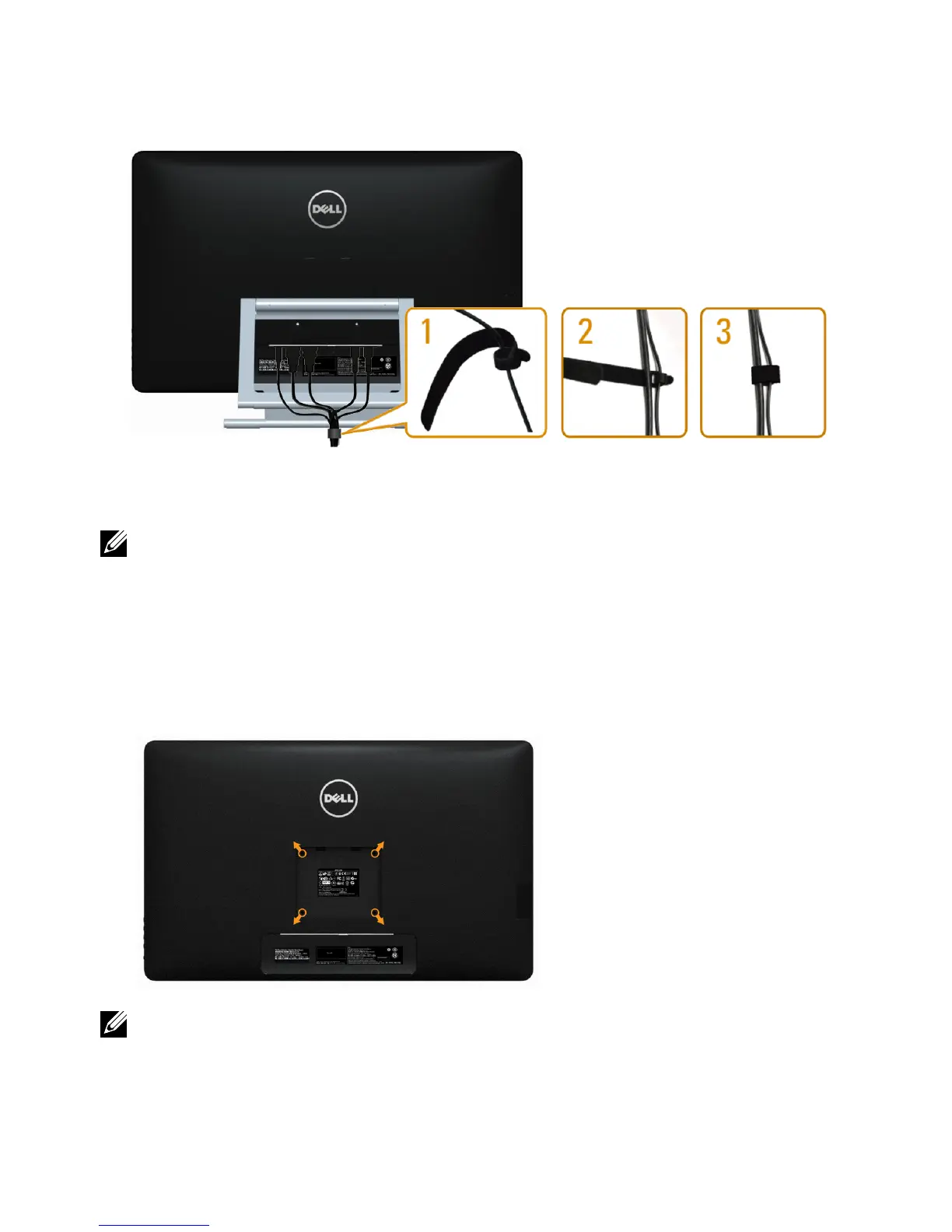

Organizing Cables
After you connect all necessary cables to your monitor and computer, use the cable-
management slot to organize the cables.
Wall Mounting (Optional)
NOTE: Use M4 x 10 mm screws to mount your display. For more details, see the
instructions that came with the VESA-compatible wall-mounting kit.
1. Place the monitor on a soft cloth or cushion on a stable flat table.
2. Remove the stand.
3. Use a screwdriver to remove the four screws that secure the back cover.
4. Attach the mounting bracket from the wall-mounting kit to the monitor.
5. Mount the monitor on the wall by following the instructions that came with the
wall mounting kit.
NOTE: For use only with UL-listed wall-mount bracket with minimum weight/load
bearing capacity of 7.11 kg.
