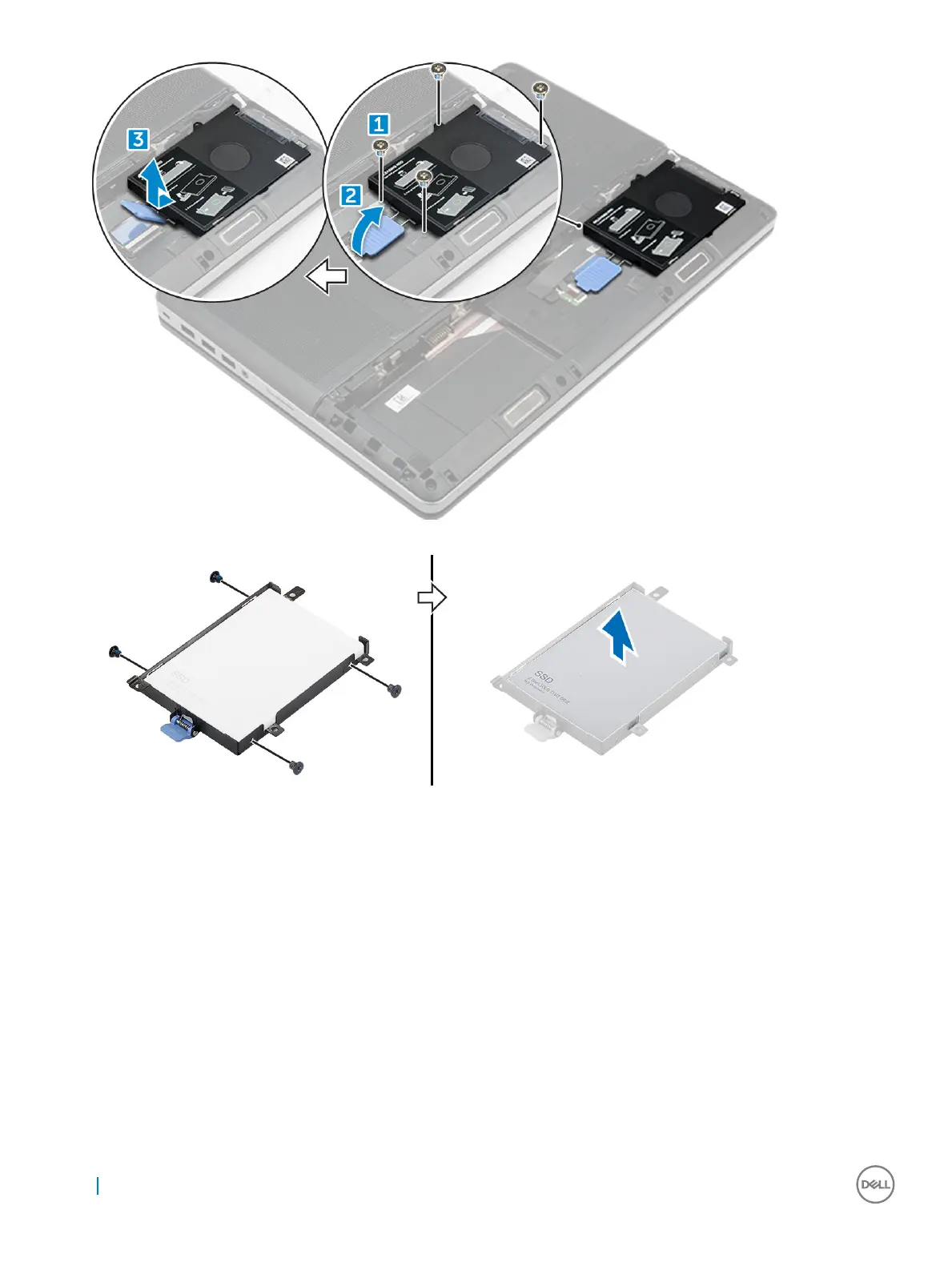

4 Remove the M3.0x3.0 screws that secure the hard drive. Lift the hard drive from the bracket.
Installing the hard drive
1 Replace the M3.0x3.0 screws to secure the hard drive to the hard drive bracket.
2 Insert the hard drive into its slot in the computer.
3 Replace the M3.0x3.0 screws to secure the hard drive to the computer.
4 Install the:
a battery
b battery cover
5 Follow the procedure in After working inside your computer.
10
Removing and installing components
