Battery
Removing the battery
1 Follow the procedure in Before working inside your computer.
2 Remove the battery cover.

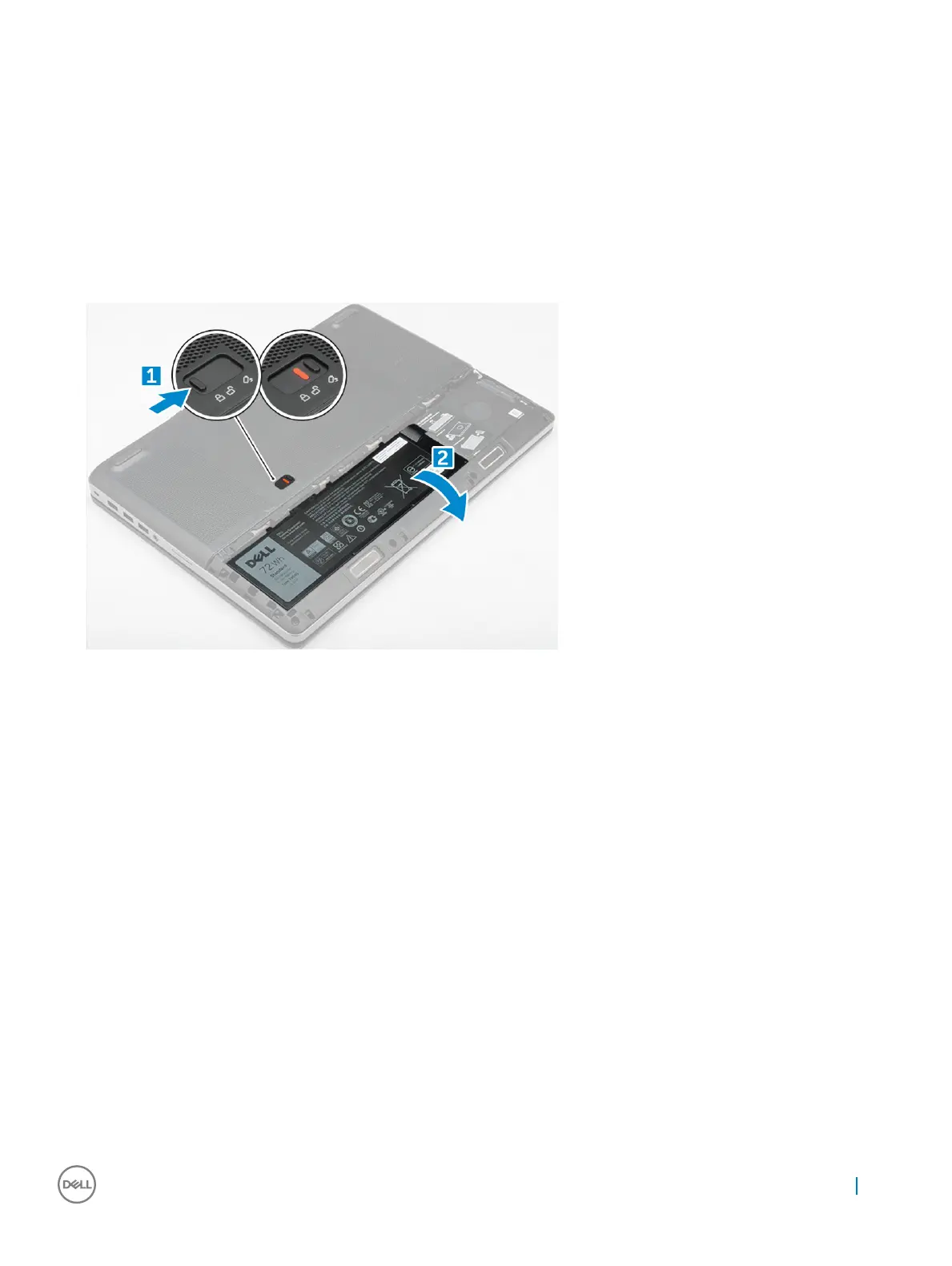

3 To remove battery:
a Slide the release latch towards from the unlock icon to unlock the battery[1].
b Lift and remove the battery from the computer [2].
Installing the battery
1 Slide the battery into its slot until it clicks into place.
2 Install the battery cover.
3 Follow the procedure in After working inside your computer
Hard drive
Removing the hard drive
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a battery cover
b battery
3 To remove hard drive:
a Remove the M3.0x3.0 screws that secure the hard drive to the computer [1].
b Lift the hard drive latch to release the hard drive [2].
c Slide and lift the hard drive from the computer [3].
Removing and installing components
9
