Speaker
Removing the Speakers
Steps
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery

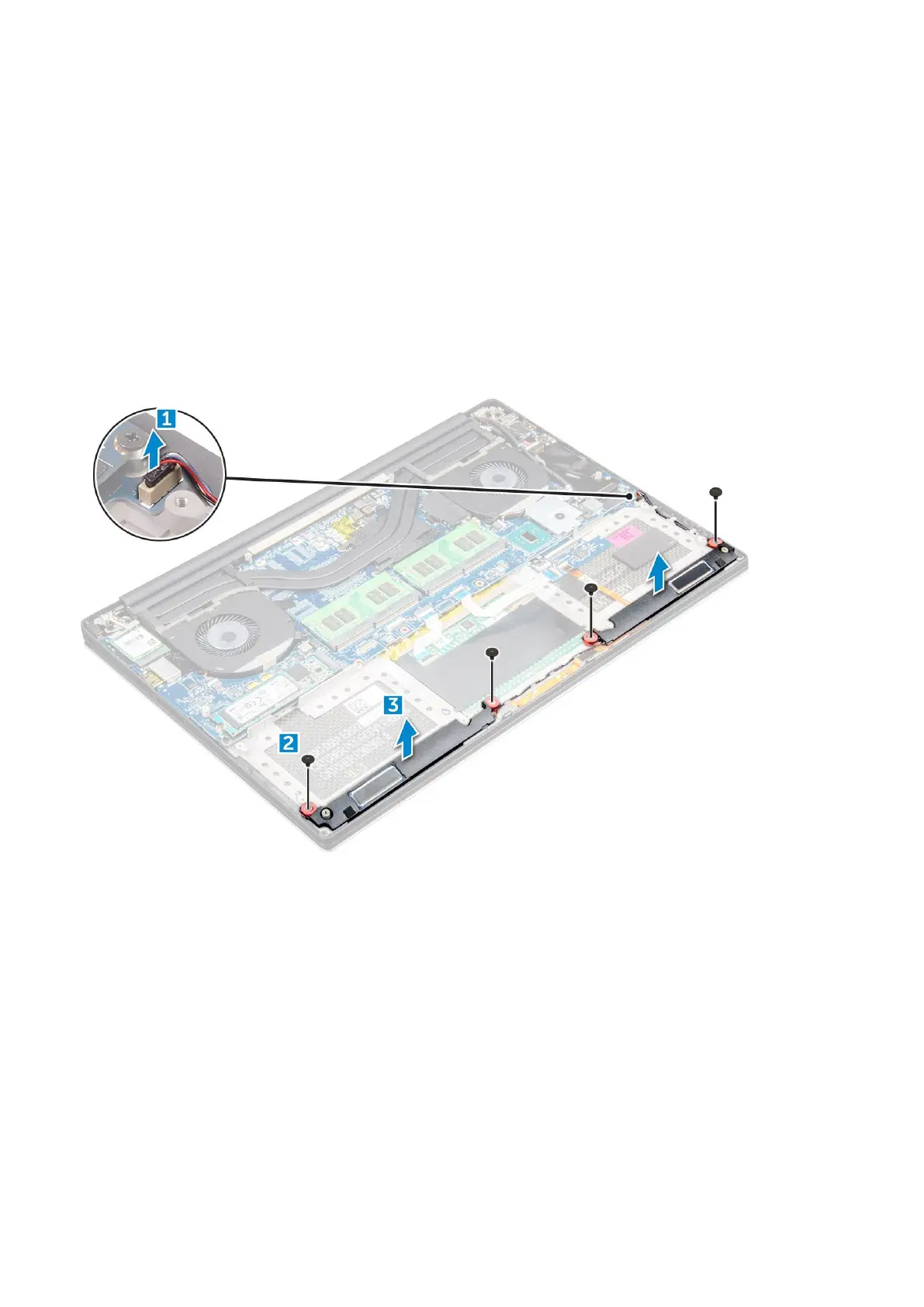

3. Perform the following steps to remove the speaker:
a. Disconnect the speaker cable from the system board [1].
b. Remove the M2x2 (4) screws that secure the speakers to the computer [2].
c. Lift the speakers, along with the speaker cable, off the computer [3].
Installing the Speakers
Steps
1. Using the alignment posts, place the speakers on the palm-rest assembly.
2. Replace the M2x2 (4) screws that secure the speakers to the palm-rest assembly.
3. Route the speaker cables through the routing guides on the palm-rest assembly.
4. Connect the speaker cable to the system board.
5. Install the:
a. battery
b. base cover
6. Follow the procedures in After Working Inside Your Computer.
