Dell P56F005 User Manual

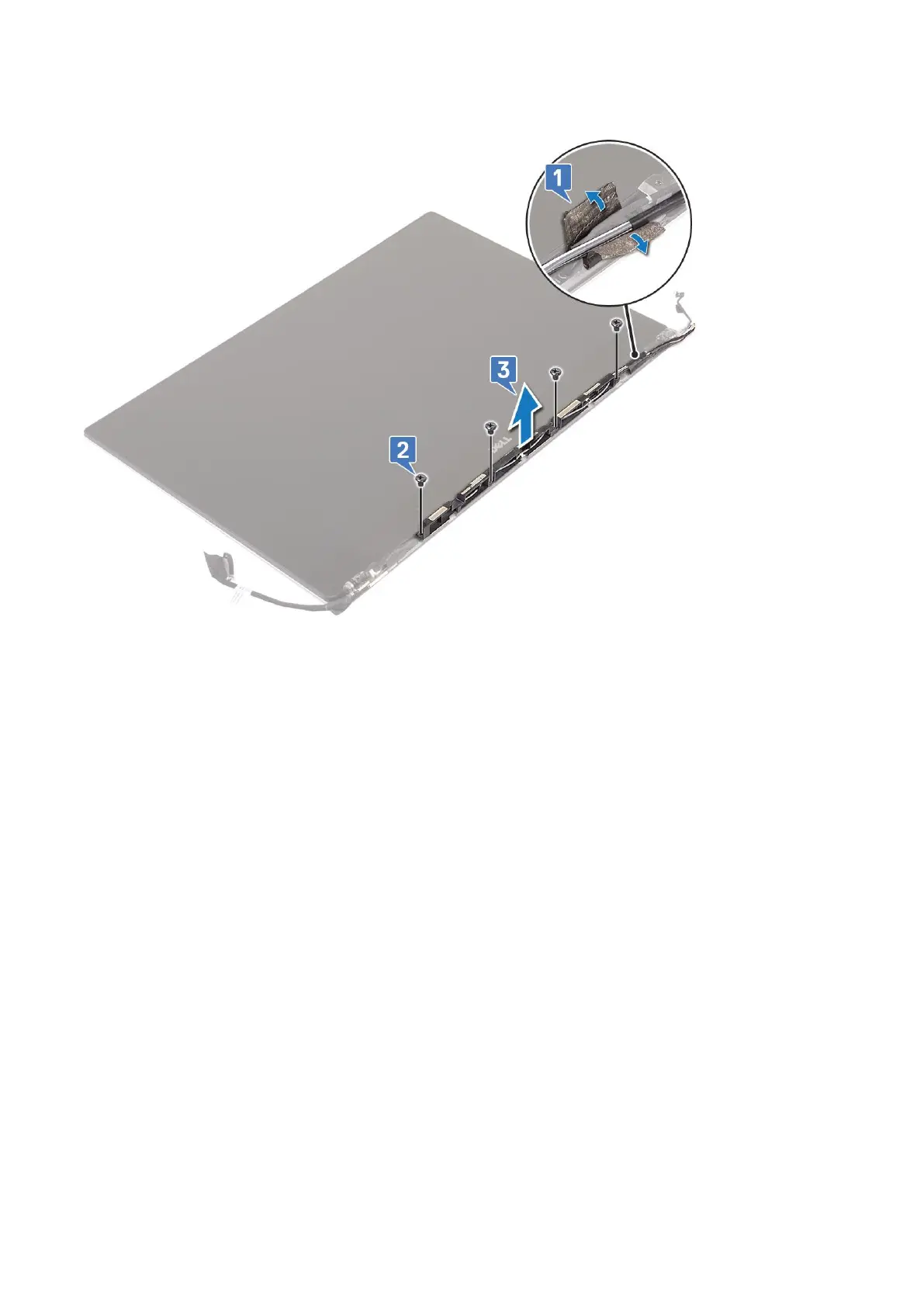

b. Remove the M2x4 (4) screws and lift the metal brackets that secure the antenna cable [2,3].
Installing the antenna cover
Steps
1. Replace the antenna cover on the display assembly.
2. Turn the display hinges to the normal position.
3. Install the:
a. Display assembly
b. WLAN card
c. Battery
d. Base cover
4. Follow the procedures in After Working Inside Your Computer.
Keyboard lattice and Keyboard
Removing the Keyboard
Steps
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery
c. fans
d. heatsink assembly
e. SSD
Disassembly and reassembly
43

Dell P56F005 Specifications

General

Model	Dell P56F005
Category	Laptop
Operating System	Windows 10 Pro
Display	15.6-inch FHD (1920x1080)
Graphics	NVIDIA GeForce GTX 1050
