Installing the Display Assembly
Steps

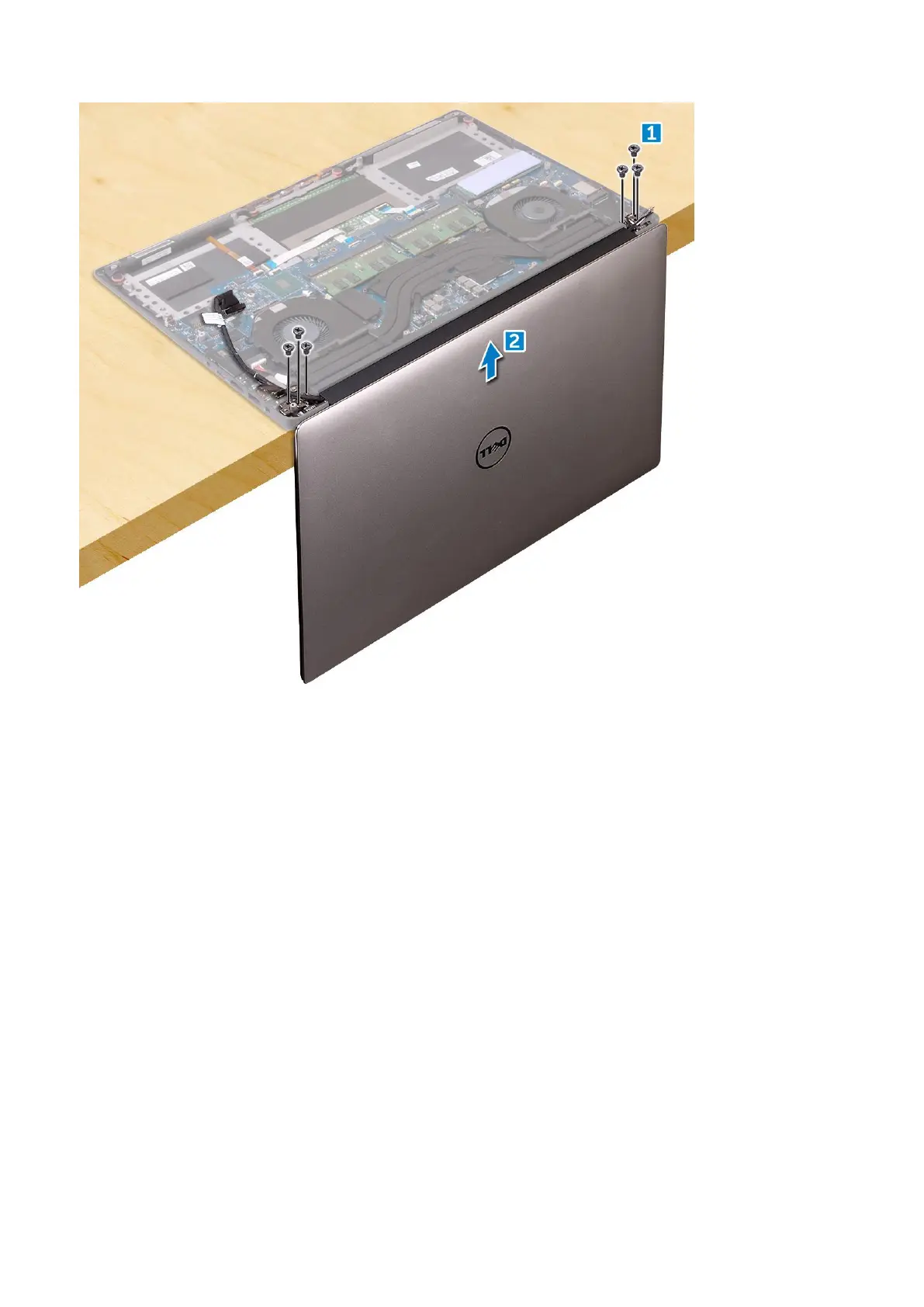

1. Place the palm-rest assembly at the edge of the table with the speakers facing away from the edge.
2. Align the screw holes on the palm-rest assembly with the screw holes on the display hinges.
3. Replace the M2.5 x 5 (6) screws that secure the display hinges to the palm-rest assembly.
4. Route thetouchscreen cable through the routing guides on the fan.
5. Connect thetouchscreen cable and display cable to the system board.
6. Replace the screw (2) that secures the display-cable bracket to the system board.
7. Install the:
a. Battery
b. Base cover
8. Follow the procedures in After Working Inside Your Computer
Antenna cover
Removing antenna
Steps
1. Follow the procedures in Before Working Inside Your Computer.
Disassembly and reassembly
41
