Installing the Keyboard
Steps
1. Adhere the Mylar to the keyboard.
2. Align the screw holes on the keyboard with the screw holes on the palm-rest assembly.
3. Replace the M1.6 x 1.5 (31) screws that secure the keyboard to the palm-rest assembly.
4. Adhere the Mylar to the screws that secure the keyboard to the palm-rest assembly.

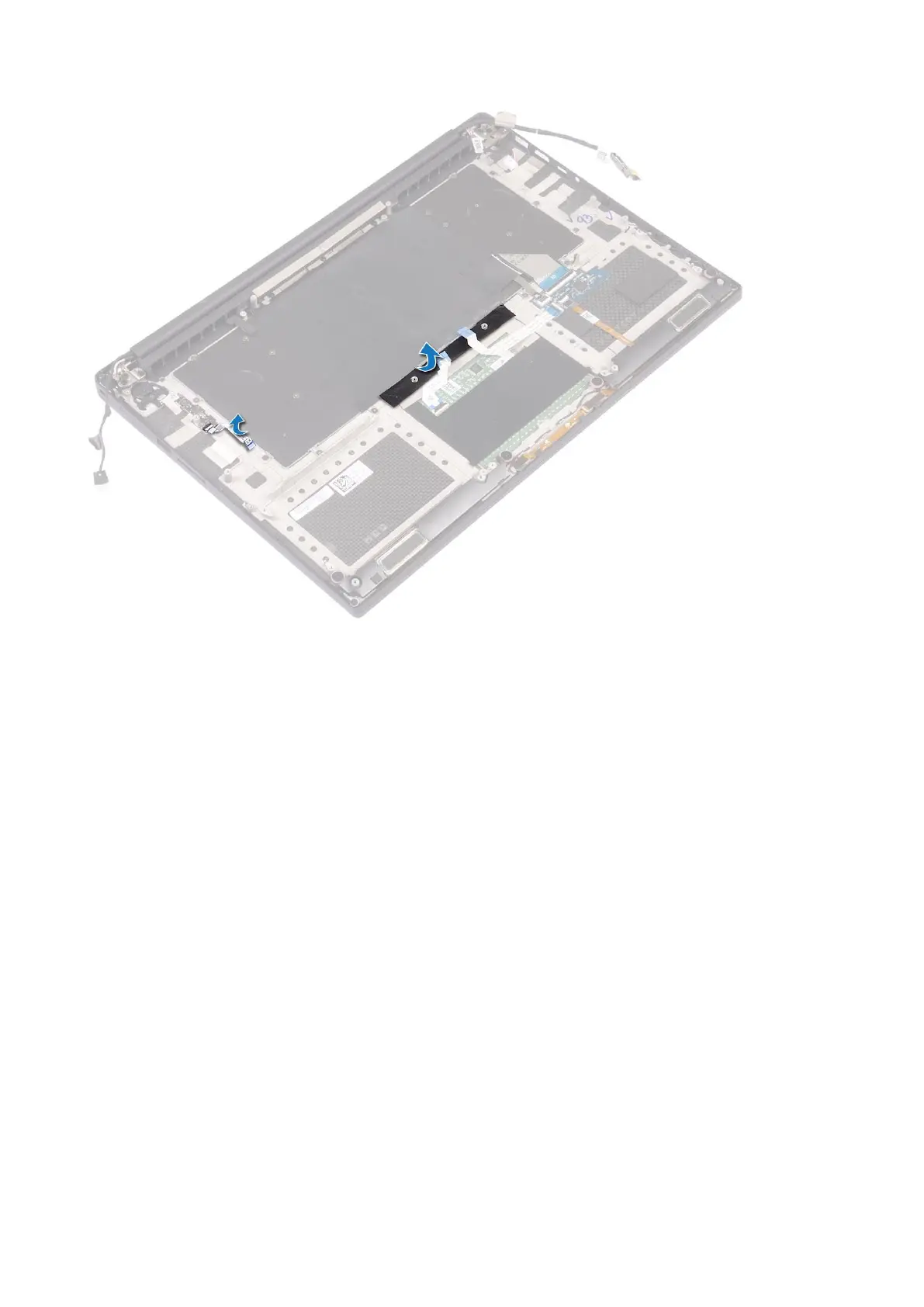

5. Connect the keyboard cable and keyboard-backlight cable to the keyboard-controls board.
6. Install the:
a. System Board
b. Hard drive
c. Base cover
7. Follow the procedures in After Working Inside Your Computer.
Palm rest
Removing the Palm rest Assembly
Steps
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery
c. WLAN card
Disassembly and reassembly
45
