Dell P80F User Manual

Steps

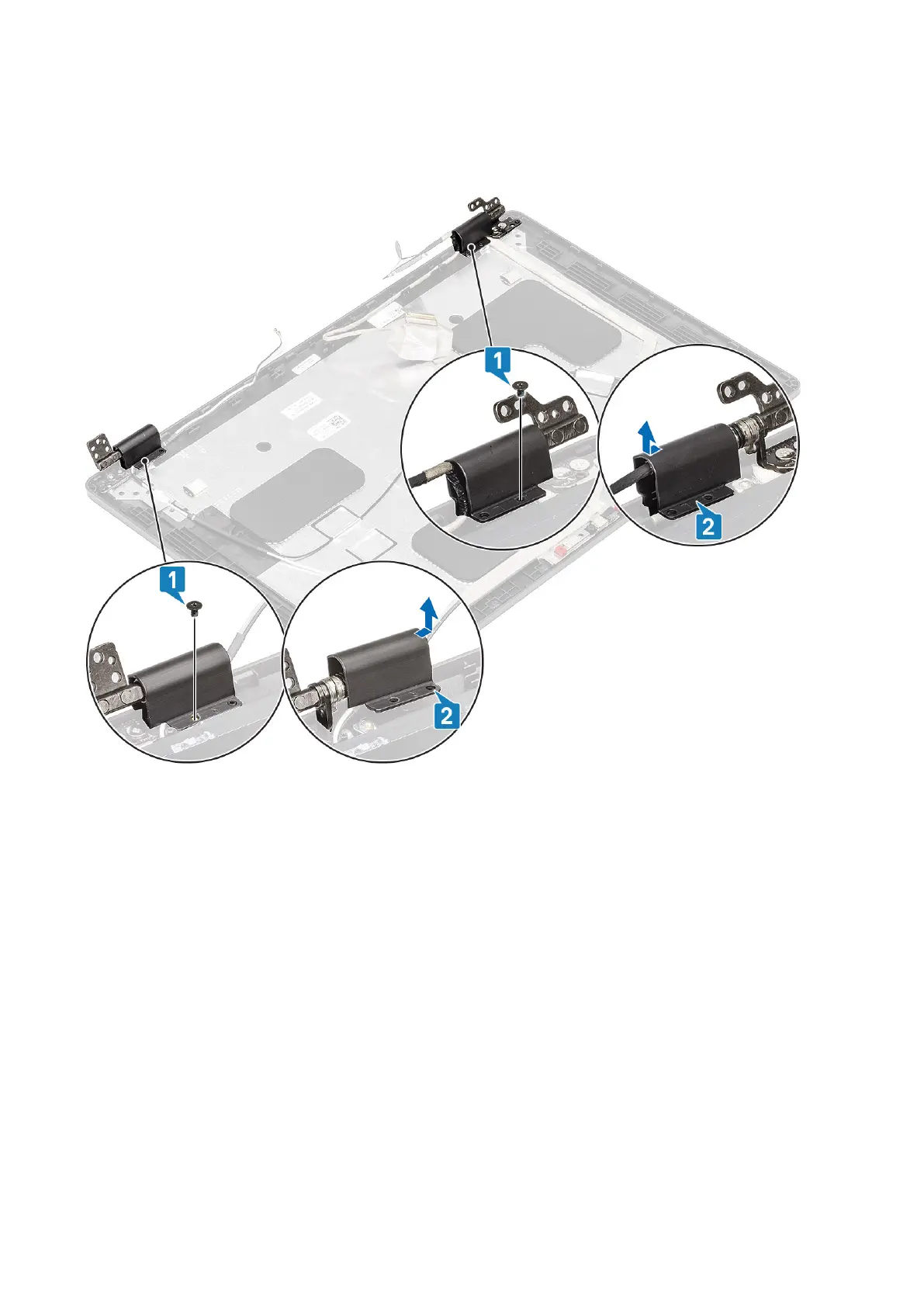

1. Remove the two (M2x2.5) screws that secure the hinge caps to the chassis [1].
2. Pinch the hinge caps to release the hinge caps from the ribs on the display back cover then slide inwards to remove the hinge caps
from the display hinge [2].
Installing hinge caps
Steps
1. Place the hinge caps and slide outward on the display hinges [1].
2. Replace the two (M2x2.5) screws to secure the hinge caps to the display hinge.
100
Disassembly and reassembly

Dell P80F Specifications

General

Category	Laptop
Model	P80F
Display	1920 x 1080
Graphics	Intel UHD Graphics 620
Operating System	Windows 10
Battery	3-Cell
Ports	HDMI, SD card reader, headphone/microphone combo jack
