Installing the system board

Steps

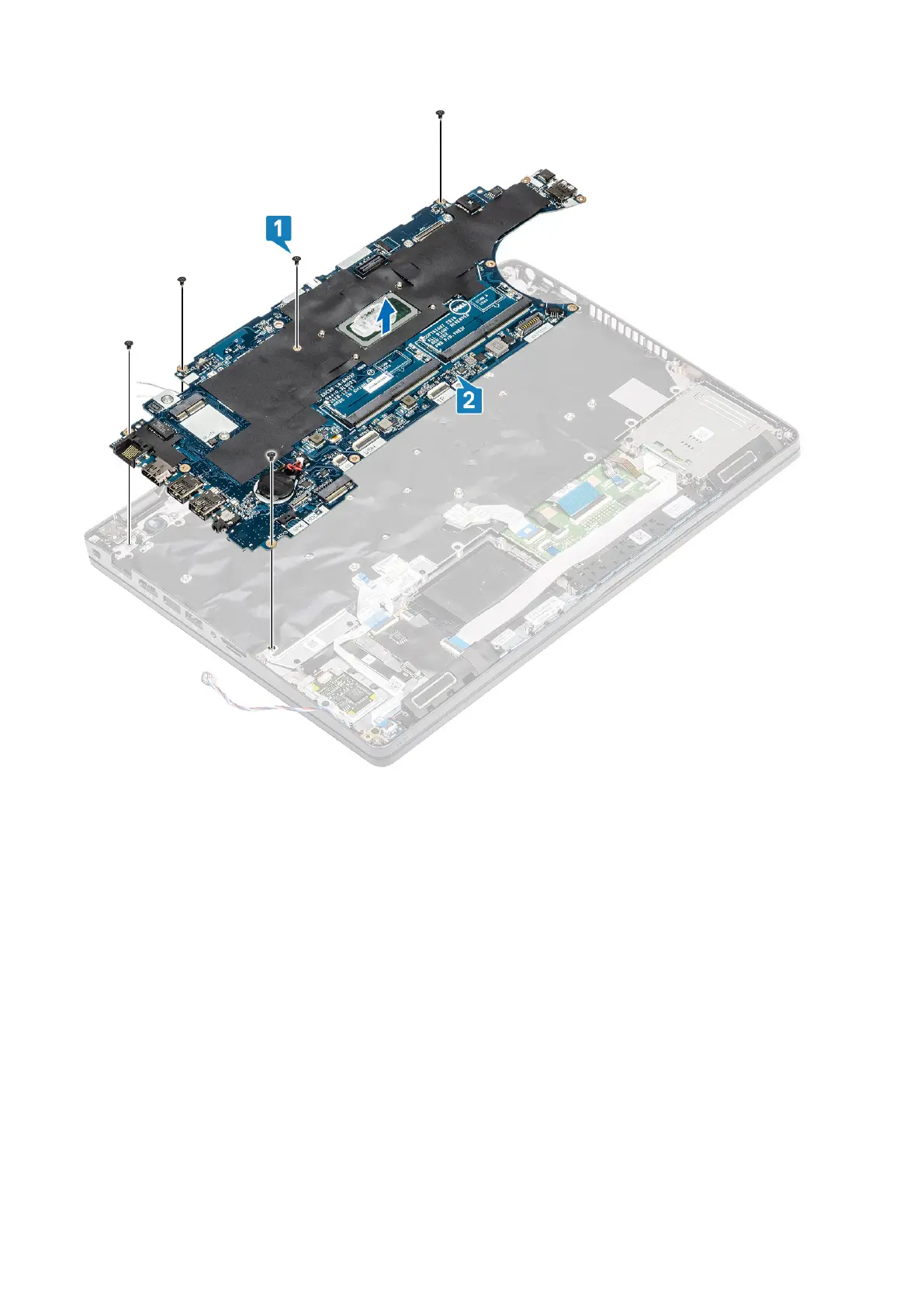

1. Align and place the system board on the palmrest [1].

2. Replace the five (M2x3) screws to secure the system board to the palmrest [2].
