Installing the display bezel

Steps

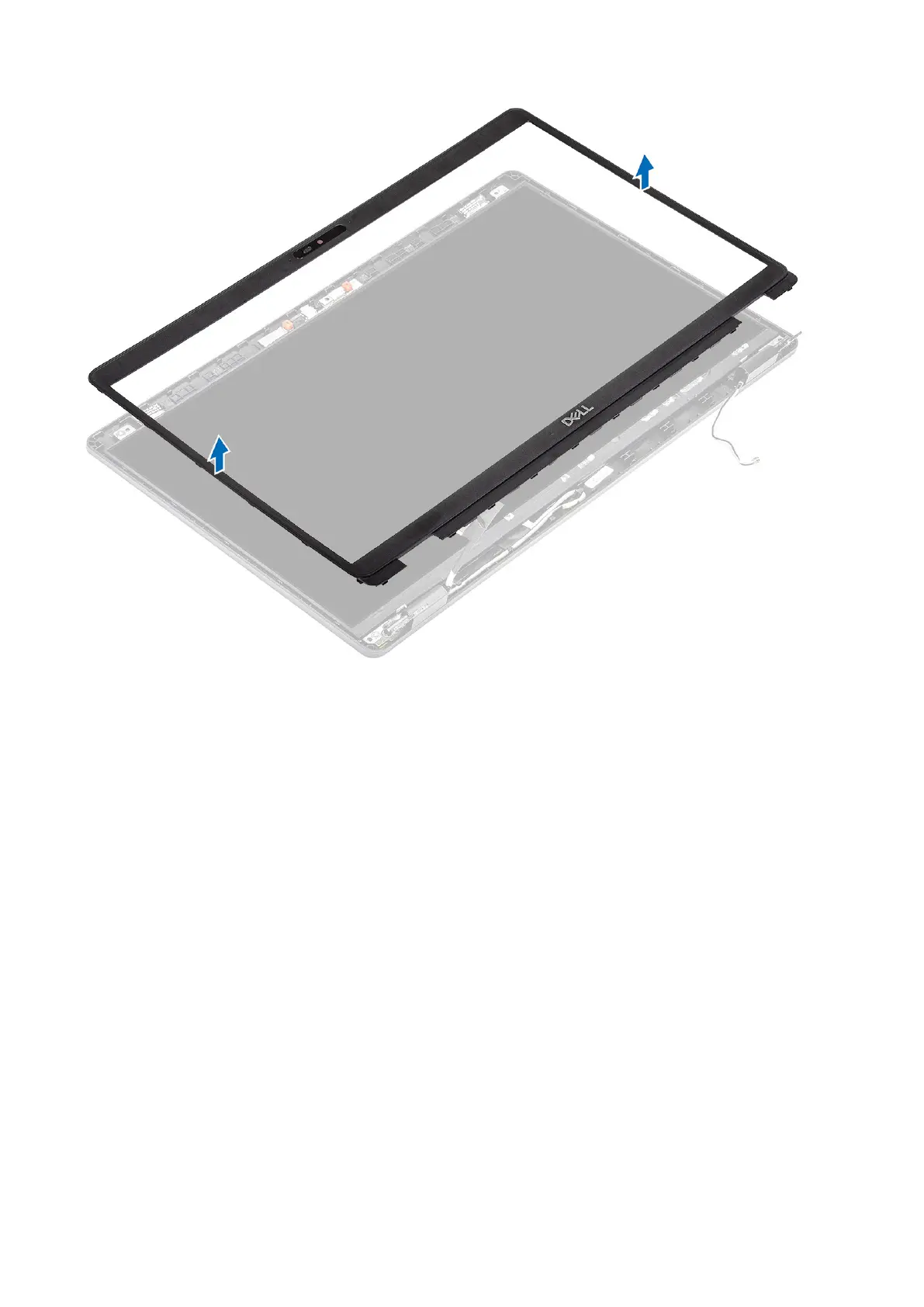

Align the display bezel with the display assembly, and then gently snap the display bezel into place.
