Installing the SmartCard reader

Steps

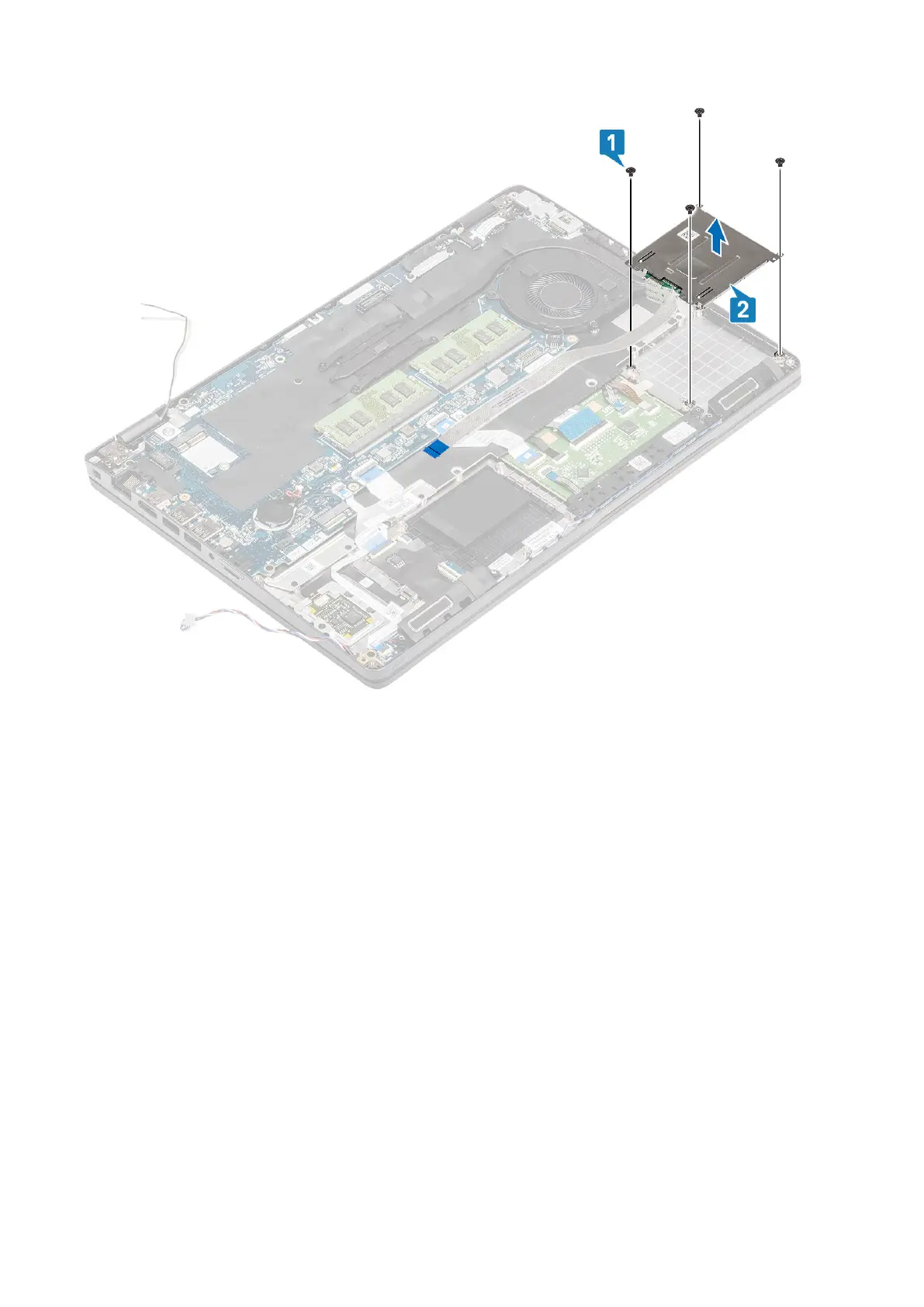

1. Place the smart card reader board on the palmrest [1].

2. Replace the four (M2x3) screws to secure the smartcard reader on the palmrest [2].

Disassembly and reassembly
