Dell P80F - Installing the Battery

Installing the battery
Steps

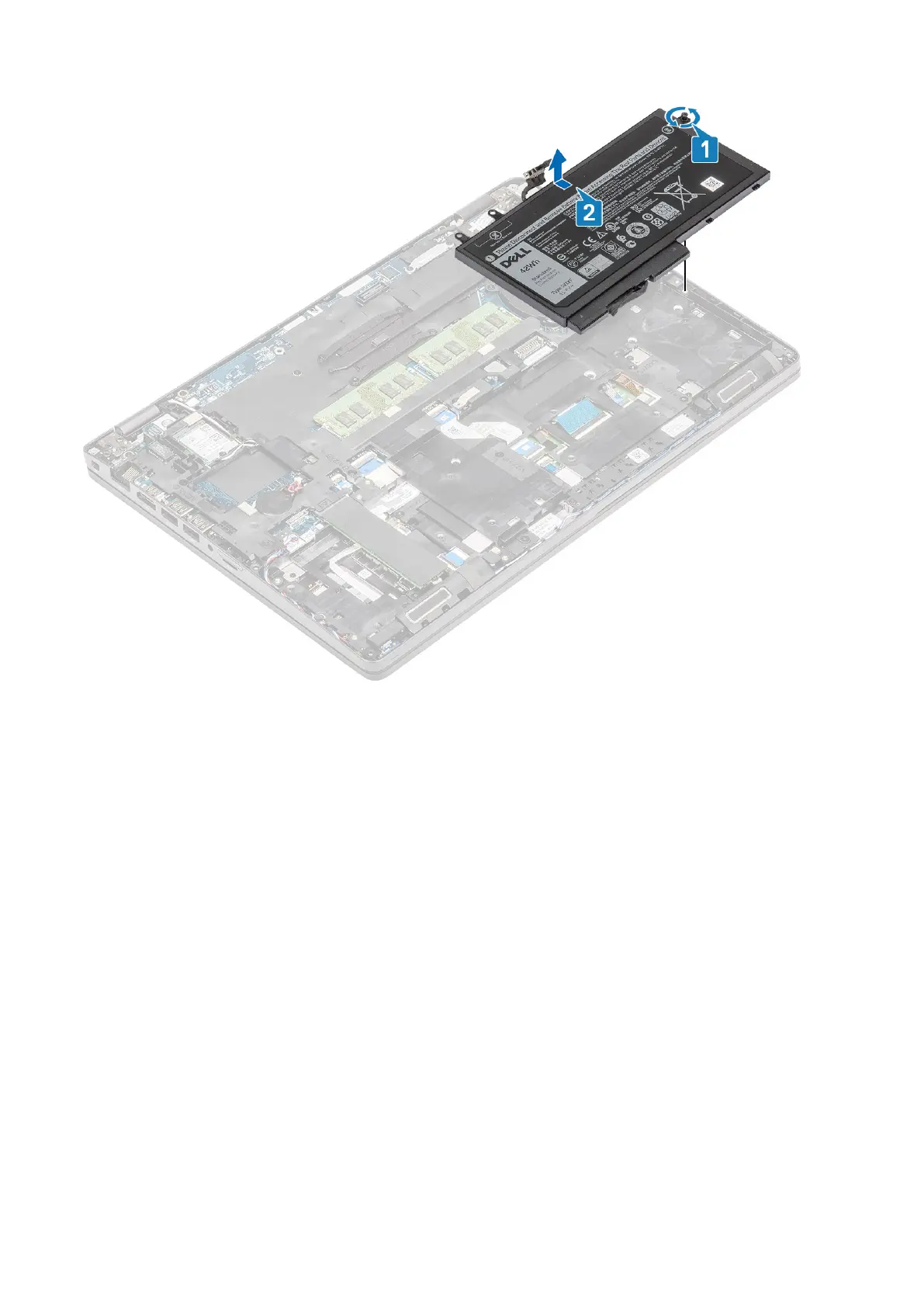

1. Align the tabs on the battery with the slots on the palm rest assembly [1].
2. Place the battery in the battery bay.
3. Tighten the single captive screw to secure the battery to the palm rest assembly [2].
26
Disassembly and reassembly
