Dell P80F - LED Board; Removing the LED Board

Next steps
1. Replace the speaker.
2. Replace the battery.
3. Replace the base cover.
4. Replace the microSD card.
5. Follow the procedure in after working inside your computer.
LED board
Removing the LED board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
Steps

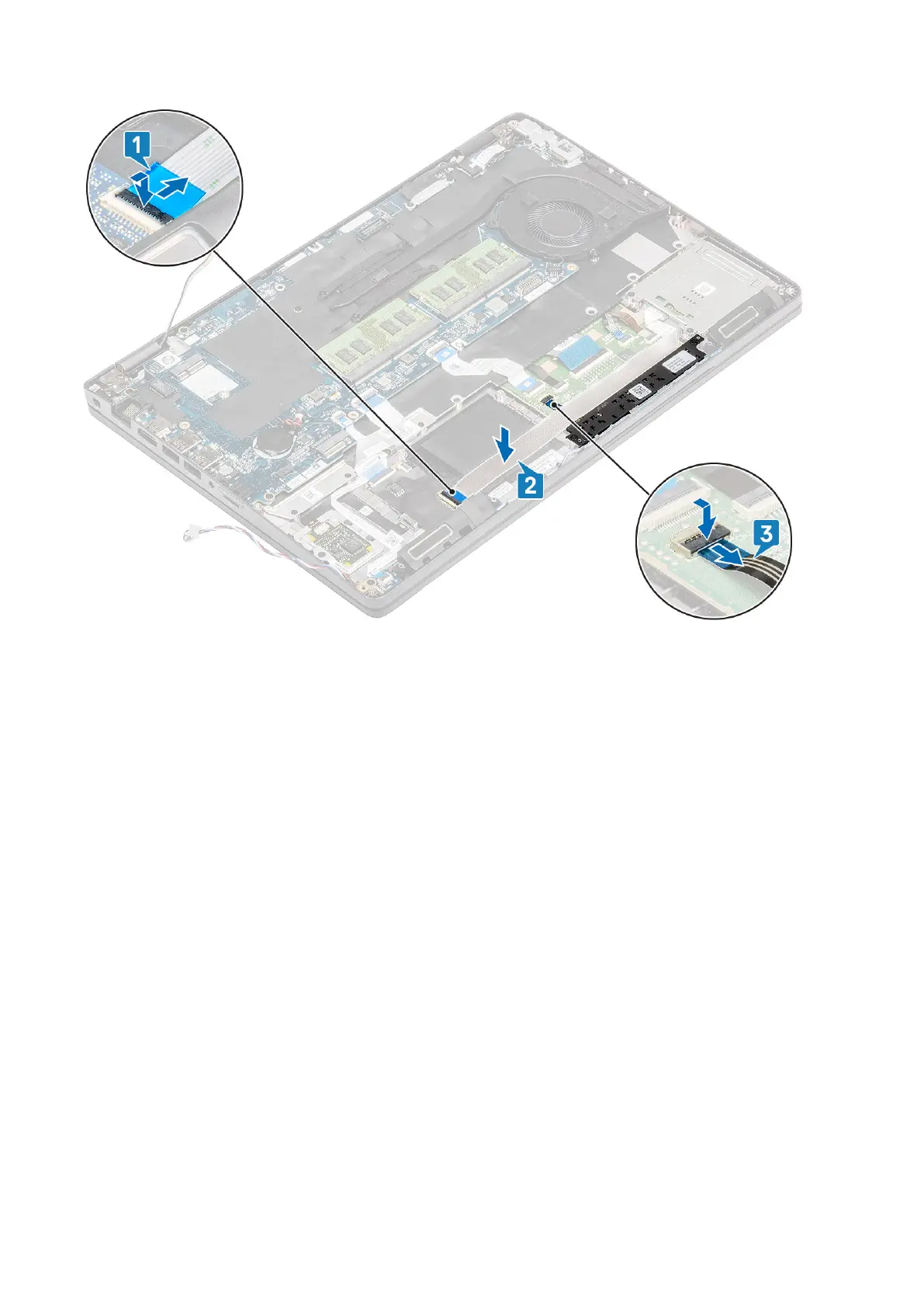

1. Disconnect and peel the USH daughter board Flexible Flat Cable (FFC) from the USH daughter board [1, 2].
Disassembly and reassembly
55
