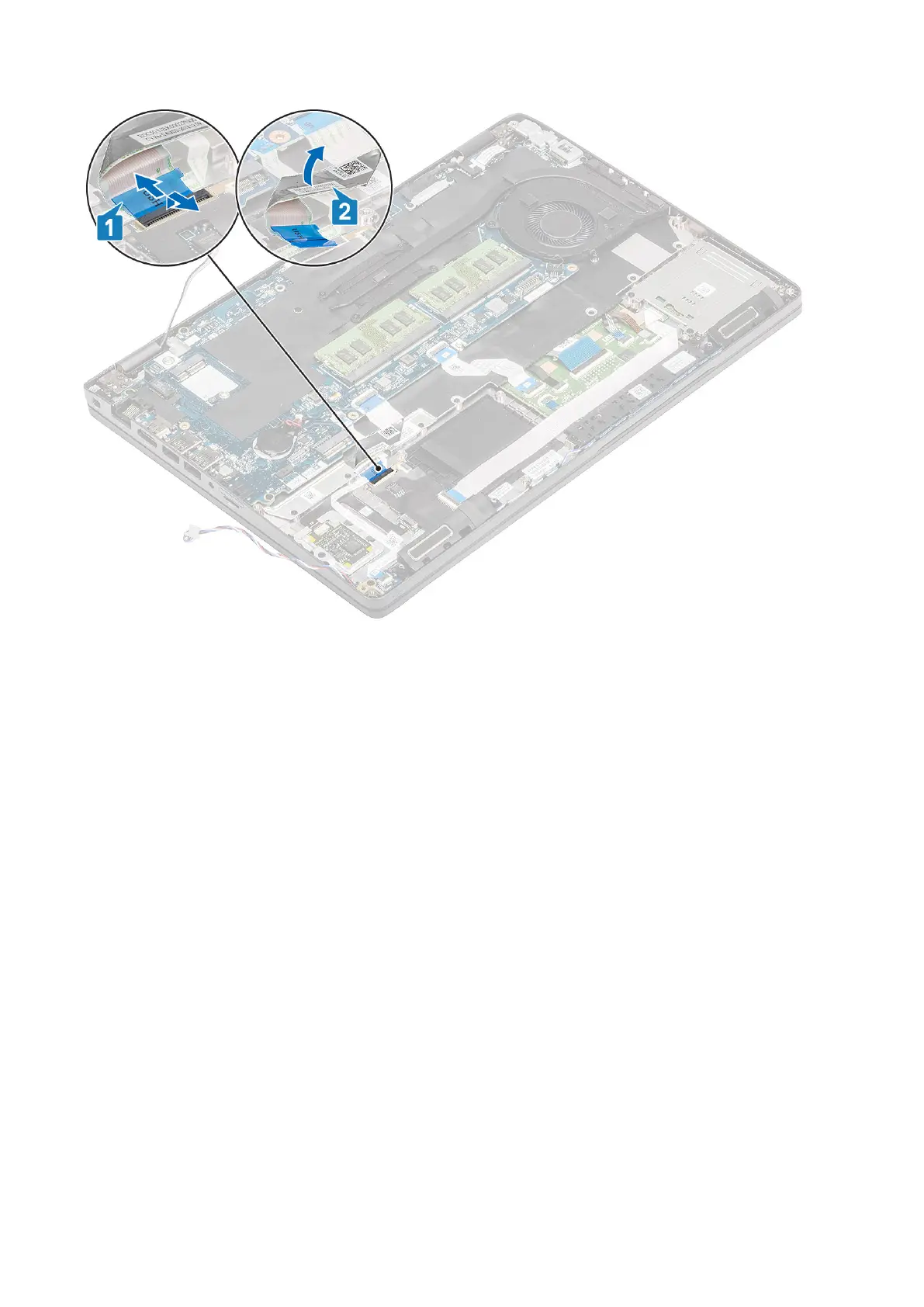

2. Disconnect the LED board cable from the connector on the system board [1].
3. Unroute the LED board cable [2].
56
Disassembly and reassembly
