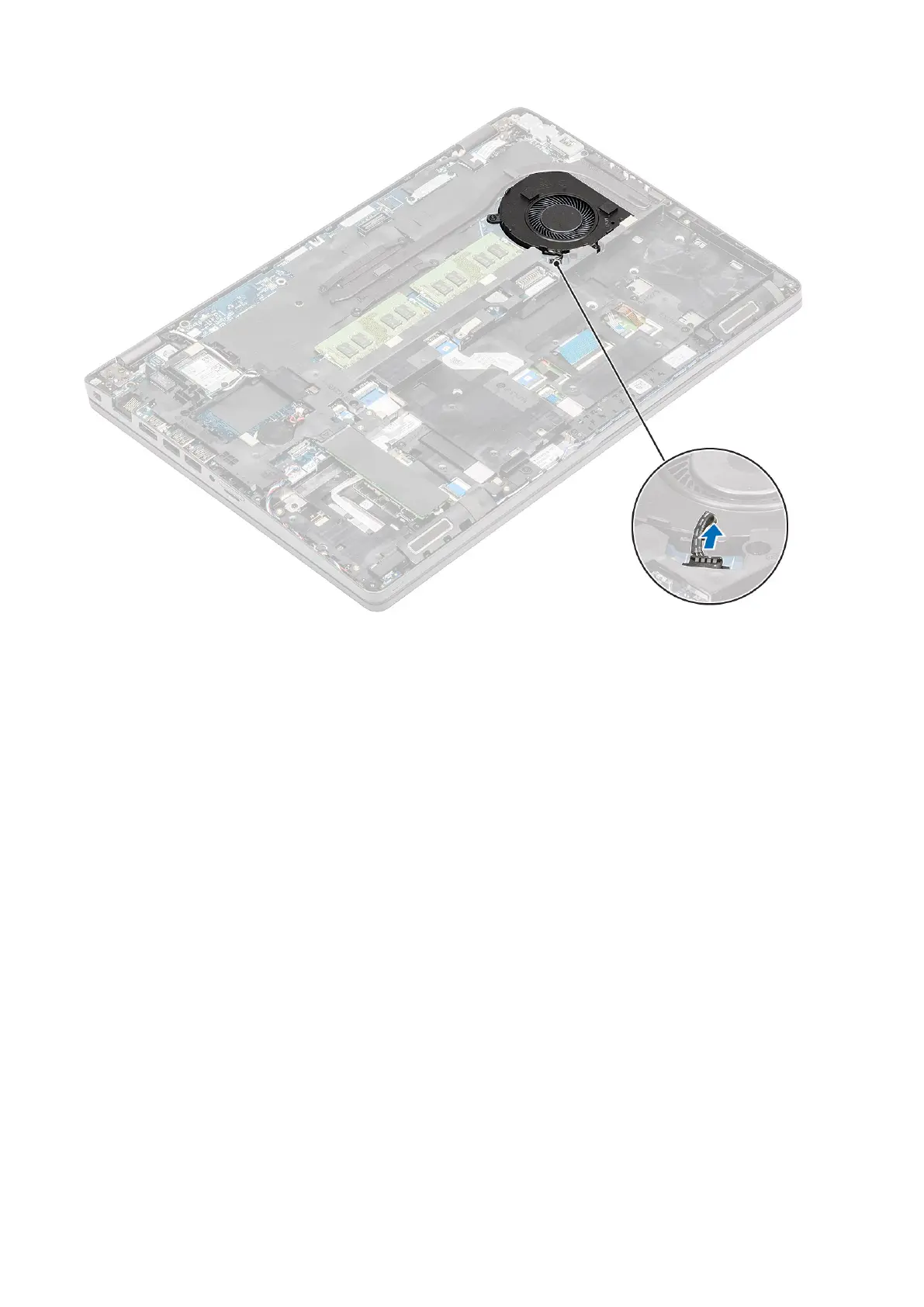

2. Remove the two (M2x5) screws that secure the system fan to the palmrest [1].

3. Lift the system fan away from the computer [2].

Disassembly and reassembly
