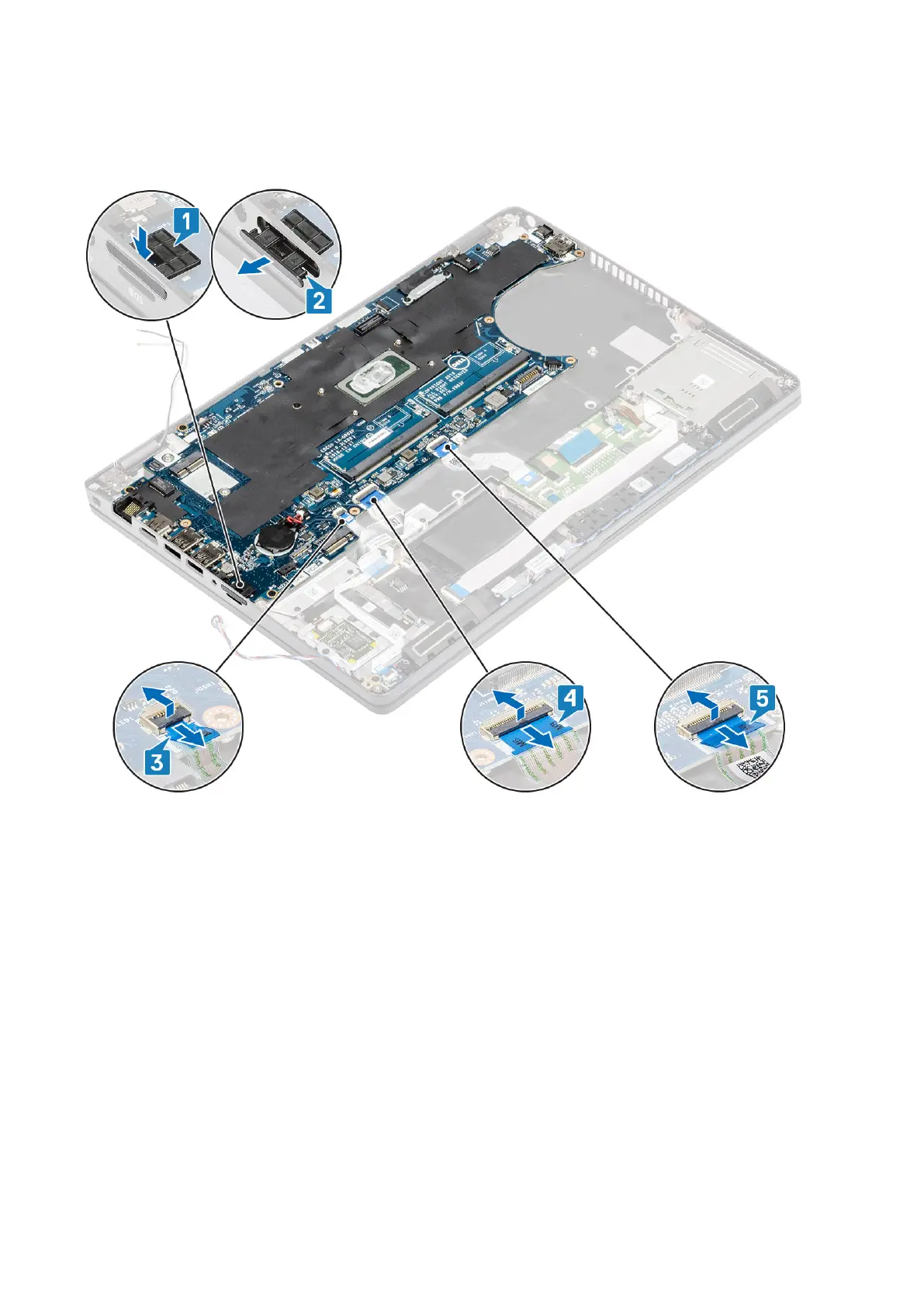

2. Lift the latch and disconnect the following cables from the system board:
a) LED board cable [3].
b) USH FFC [4].
c) Touchpad FFC [5].
3. Remove the two (M2x3) screws that secure the eDP bracket to the system board [1].
4. Remove the eDP bracket away from the computer [2].
5. Lift the eDP cable from the connector on the system board [3].
70
Disassembly and reassembly
