6. Remove the six (M2.5x4) screws that secures the display assembly to the system chassis [1].

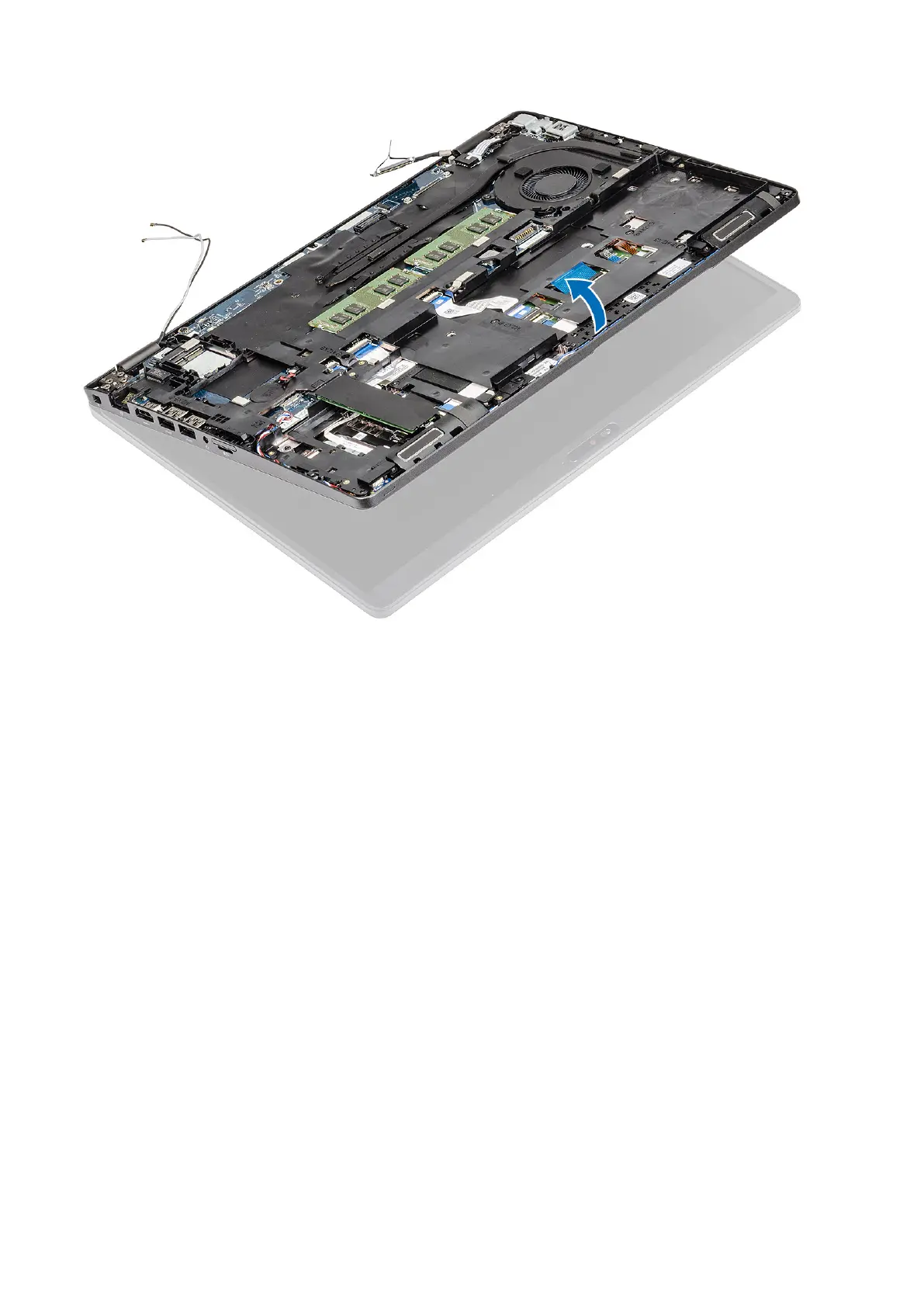

7. Remove the display assembly from the system [2].
