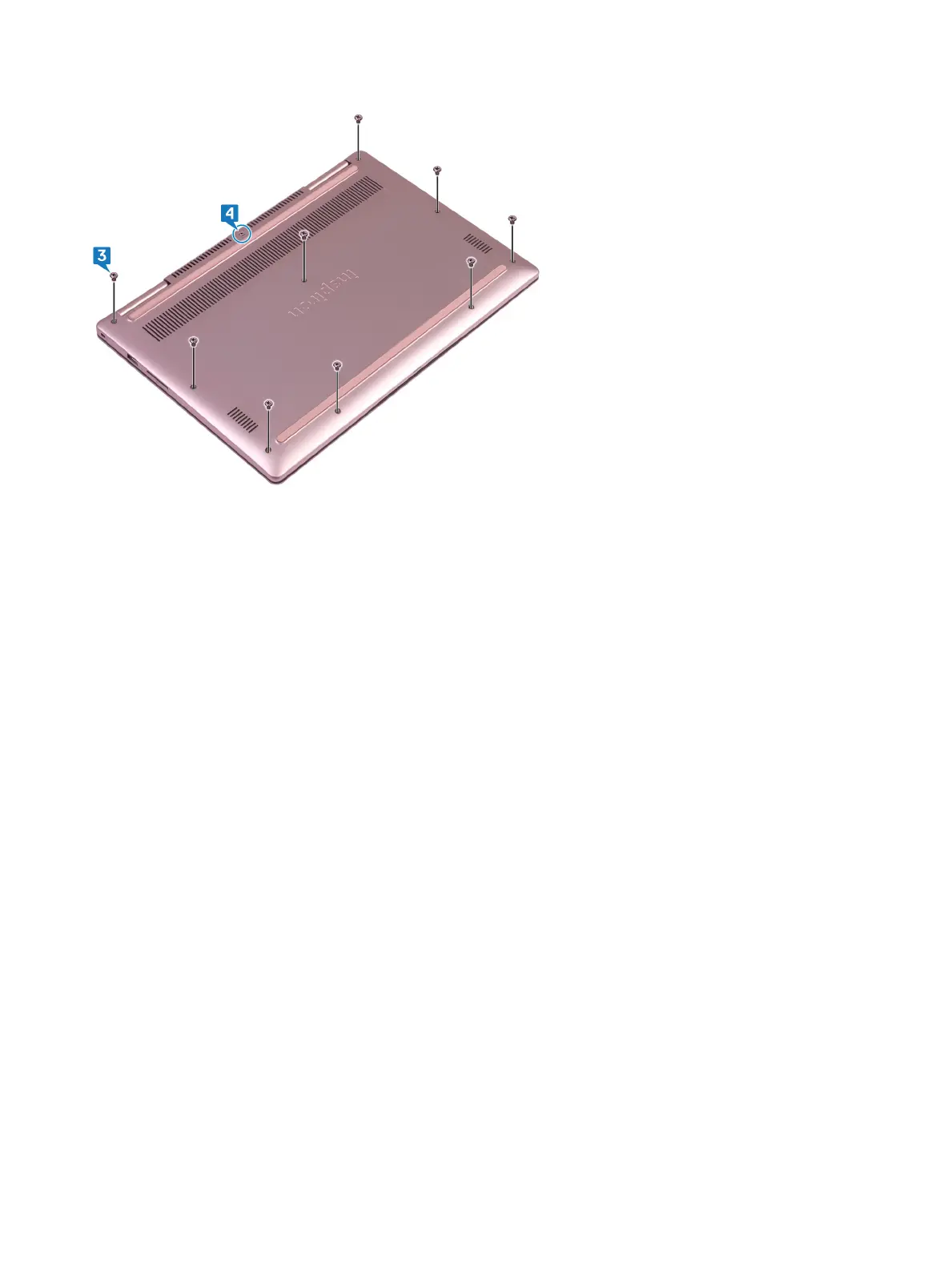

3 Replace the nine screws (M2.5x5) that secure the base cover to the palm-rest assembly.

4 Tighten the captive screw that secures the base cover to the palm-rest assembly.

Replacing the base cover 13
