Removing the display assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Follow the procedure from step 1 to step 4 in Removing the wireless card.
Procedure
NOTE: The touchscreen-board cable removal is only applicable for computers shipped with touchscreen conguration.

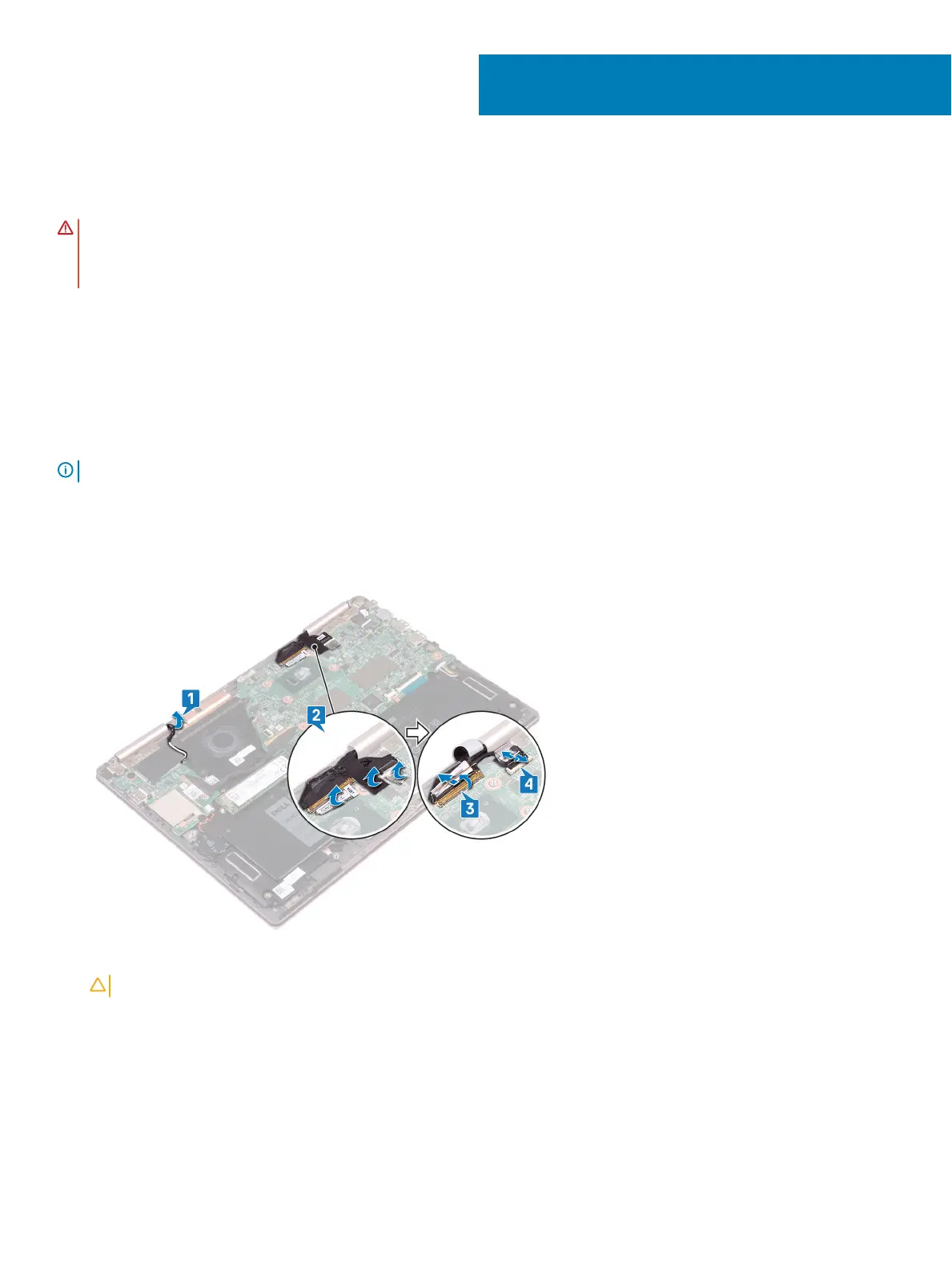

1 Remove the antenna cables from the routing guides on the palm-rest assembly.
2 Peel o the adhesive tapes that secure the display cable and touchscreen-board cable to the system board.
3 Open the latch and disconnect the display cable from the system board.
4 Open the latch and disconnect the touchscreen-board cable from the system board.
5 Turn the computer over and open the display as far as possible. Then place the computer face down on a at surface.
CAUTION
: Place the computer on a soft and clean surface to avoid scratching the display.
6 Remove the six screws (M2.5x5) that secure the display assembly to the palm-rest assembly.
7 Gently lift the display assembly o the palm-rest assembly.
19
30 Removing the display assembly
