Screw list
NOTE: Screw color may vary with the conguration ordered.

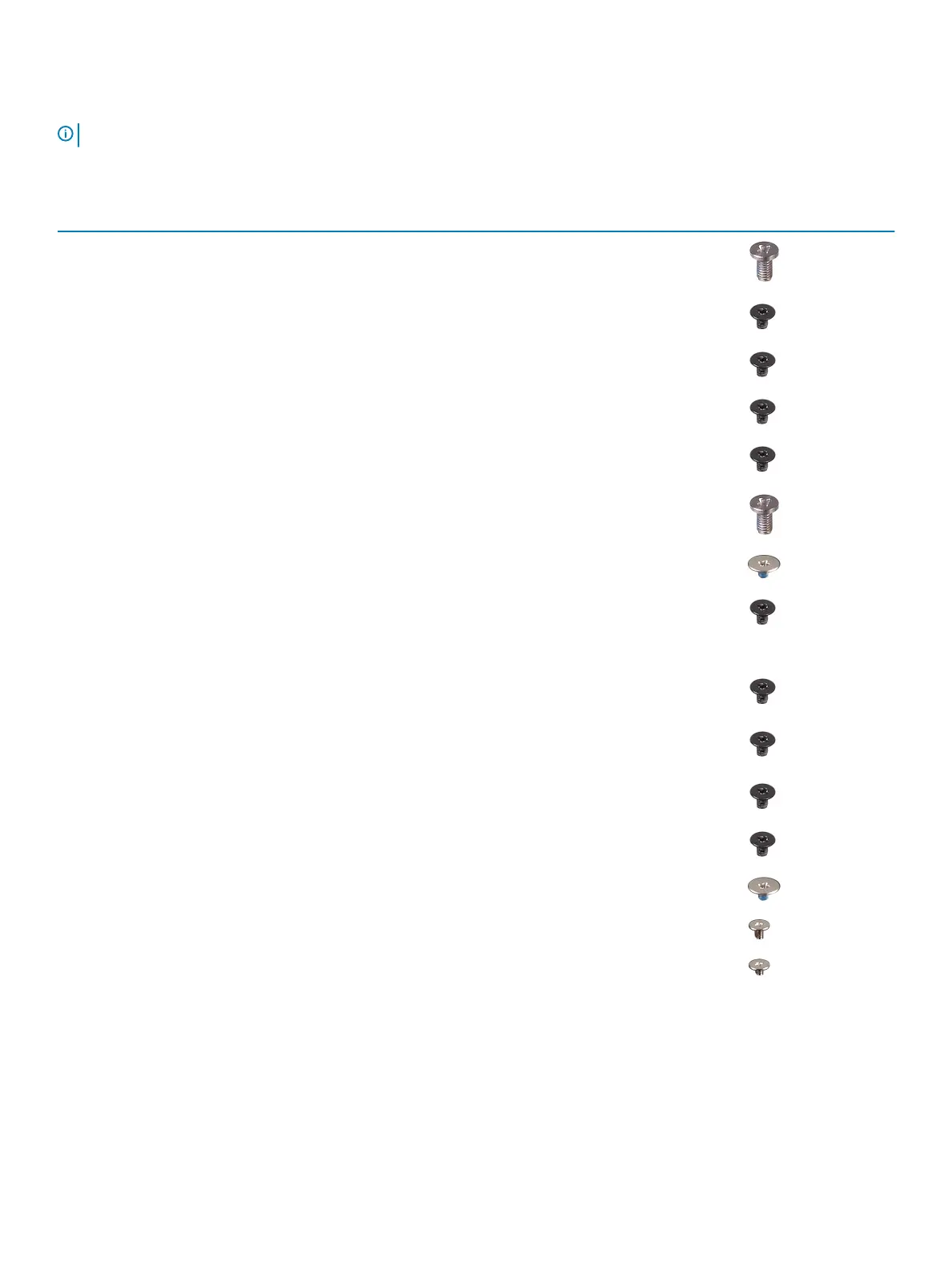

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Bottom cover Palm-rest assembly M2.5x5 9
Battery Palm-rest assembly M2x3 4
Fan Keyboard bracket M2x3 2
Wireless card Keyboard bracket M2x3 1
Power-adapter port Palm-rest assembly M2x3 1
Display assembly Palm-rest assembly M2.5x5 6
I/O Board Keyboard bracket M2x2 2
Power button with
ngerprint reader
(if installed)
Palm-rest assembly M2x2.5 2
Solid-state drive Keyboard bracket M2x3 1
Type-C port bracket
System board
M2x3
1
Palm-rest assembly 1
Touchpad Palm-rest assembly M2x2.5 4
Touchpad bracket Palm-rest assembly M2x2.5 3
System board Keyboard bracket M2x2 2
Keyboard bracket Keyboard Palm-rest assembly M1.4x2 27
Keyboard Palm-rest assembly M1.2x1.5 6
8 Before working inside your computer
