P992 (E) 4-13

1 2 3 4

5 67

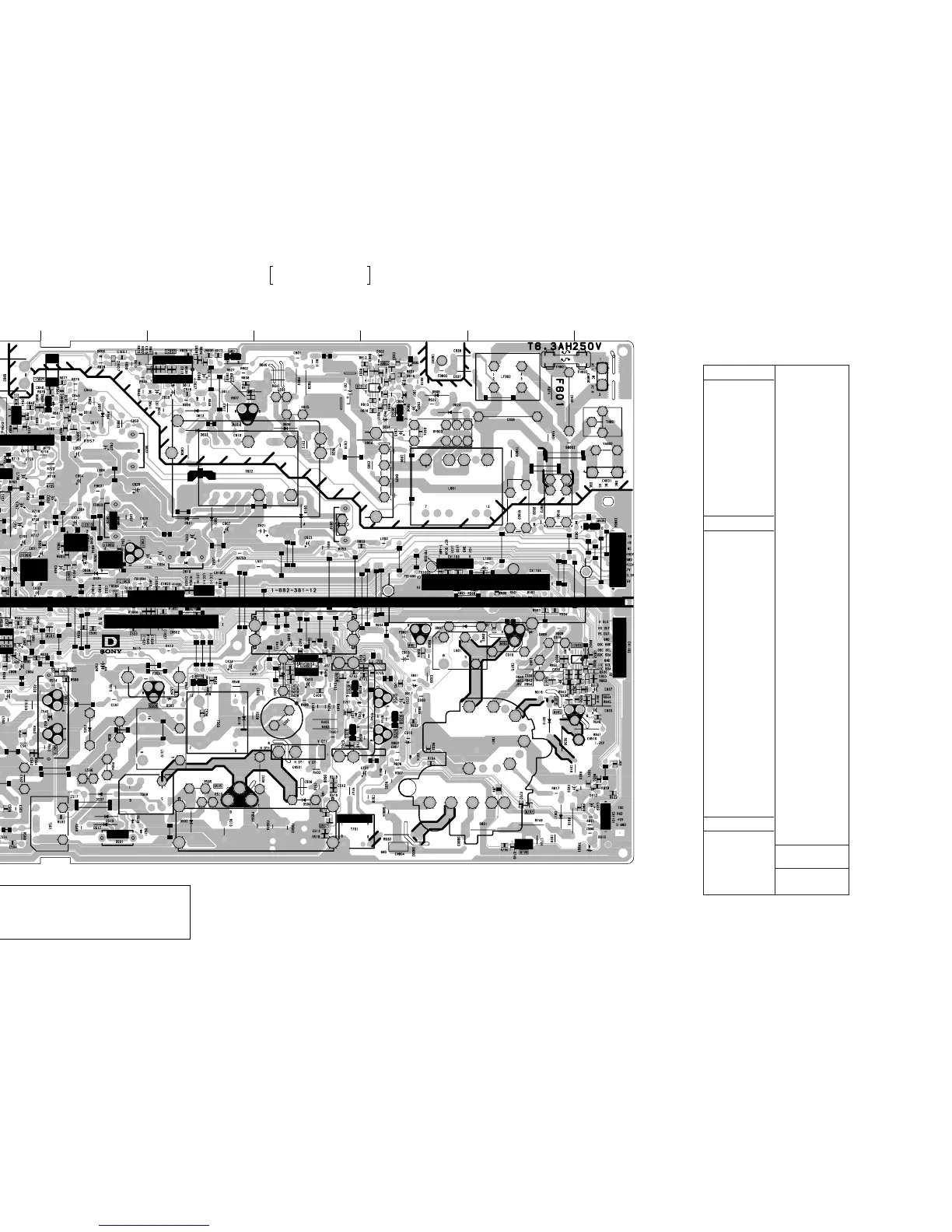

— D BOARD —

NOTE:

The circuit indicated as left contains high voltage of over

600 Vp-p. Care must be paid to prevent an electric shock in

inspection or repairing.

(d)

DEFLECTION, H DF, V DF

HV, POWER SUPPLY

• D BOARD

SEMICONDUCTOR

LOCATION

: Refer to Terminal name of

semiconductors in silk screen

printed circuit (see page 4-7)

IC401 D-4

IC501 C-1

IC601 B-2

IC603 A-3

IC604 C-1

IC605 C-2

IC607 A-2

IC608 A-1

IC610 B-2

IC611 A-5

IC701 B-1

IC702 B-1

IC703 A-1

IC902 C-6

IC1603 C-3

TRANSISTOR

Q501 C-2 1

Q502 C-1 1

Q503 C-1 1

Q504 E-1 -

Q505 E-3 -

Q506 D-3 -

Q507 E-4 1

Q510 D-3 -

Q511 D-2 -

Q512 D-2 -

Q513 D-1 -

Q514 D-1 -

Q515 E-1 -

Q601 A-3 -

Q602 A-5 1

Q603 A-5 -

Q605 A-3 -

Q606 A-2 1

Q607 C-2 1

Q608 B-6 -

Q609 A-2 -

Q701 D-4 -

Q702 D-4 -

Q703 D-5 -

Q704 D-5 -

Q705 D-5 -

Q706 E-6 -

Q707 E-6 1

Q708 D-4 1

Q901 C-5 -

Q902 C-6 -

Q905 D-6 -

Q906 D-6 1

Q907 D-6 1

DIODE

D401 D-4 -

D405 C-4 -

D501 E-1 -

D502 E-3 -

D503 D-3 -

D504 E-4 -

D505 D-2 -

D506 E-4 -

D507 E-2 -

D510 E-2 -

D516 D-3 -

D517 E-2 -

D520 E-2 -

D521 E-2 -

D601 A-5 -

D602 A-5 -

D603 A-5 3

D604 A-5 -

D605 A-5 -

D606 A-5 -

D607 A-2 3

D608 A-2 -

D609 A-4 -

D610 A-2 -

D611 A-3 -

D612 A-3 -

D613 A-3 -

D614 B-4 -

D615 A-2 -

D616 A-2 -

D617 A-2 -

D618 B-4 -

D619 C-3 -

D620 B-2 -

D621 B-3 -

D622 B-2 -

D623 A-5 -

D624 A-5 3

D625 B-5 -

D626 B-6 -

D627 A-3 -

D628 B-6 -

D629 A-2 3

D630 A-2 -

D631 B-3 -

D632 A-3 -

D633 A-3 3

D634 A-3 3

D635 C-2 -

D636 A-3 3

D639 C-2 -

D701 D-4 -

D702 D-4 -

D703 D-5 -

D902 D-5 -

D906 C-5 3

D907 C-5 -

D909 C-6 -

D910 D-6 -

D911 E-6 -

D912 E-6 -

D914 D-5 -

D917 D-5 -

D918 D-6 3

D919 D-6 3

D920 D-6 3

D923 D-6 3

VARIABLE

RESISTOR

RV901 E-6
