Dell P992 - SECTION 5 EXPLODED VIEWS; Chassis

P992 (E) 5-2
REF.NO. PART NO. DESCRIPTION REMARK
8
6
7
10
5
12
11
13
14
9
1
15
2
3
4
[AEP]
[U/C, J, CH,
NH, SH, EQ]

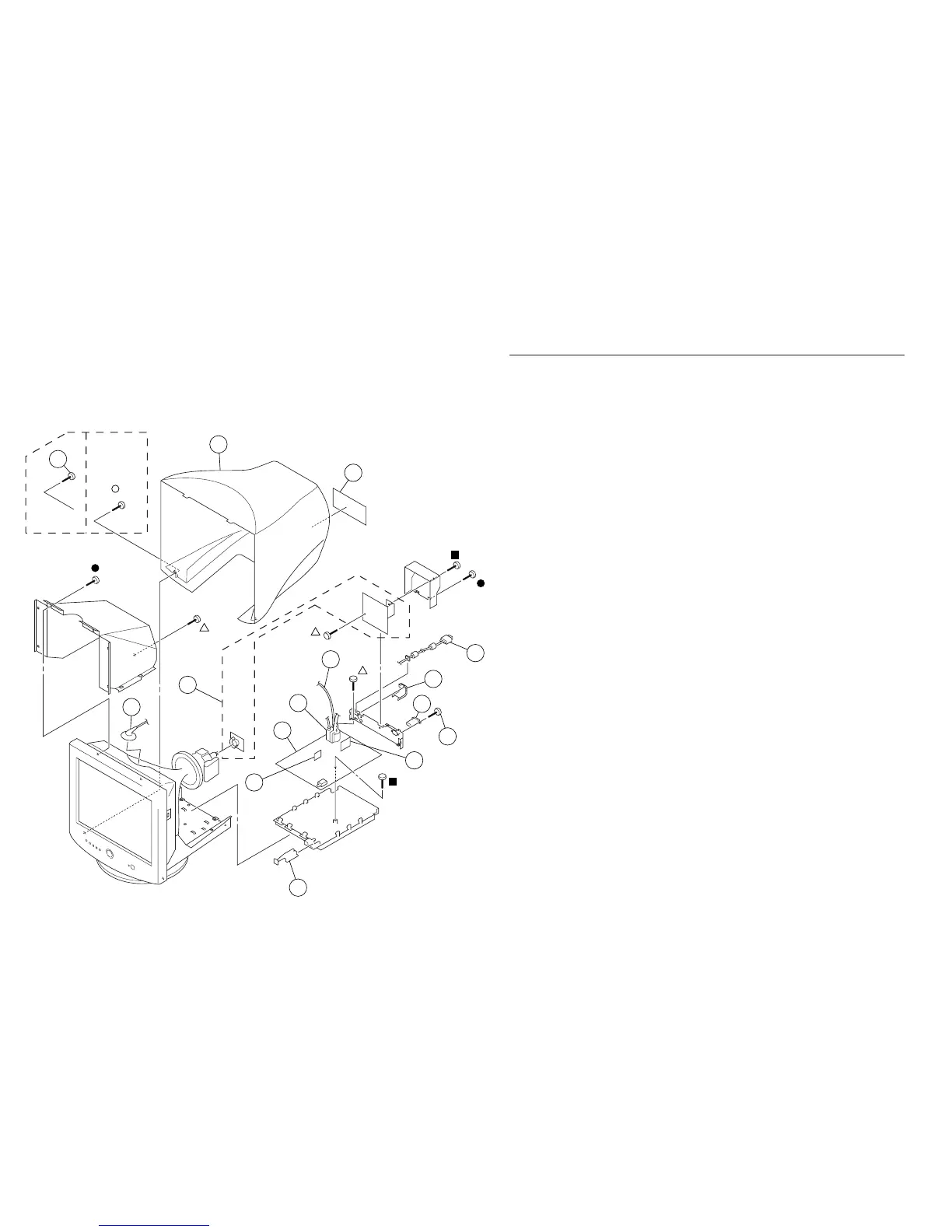

5-1. CHASSIS
a 7-685-663-71 +BVTP 4X16
z 7-685-881-09 +BVTT 4X8
x 7-685-647-79 +BVTP 3X10
f 7-685-872-09 +BVTT 3X8
1 * A-1299-559-A A BOARD, COMPLETE [U/C, AEP]
1 * A-1299-618-A A BOARD, COMPLETE
[J, CH, NH, SH, EQ]
2 4-039-358-01 SCREW (4X16), (+) BV TAPPING [AEP]
3 * 4-084-467-01 CABINET [U/C]
3 4-079-917-31 CABINET [J, CH, NH, SH, EQ]
3 4-081-551-11 CABINET [AEP]
4 * 4-084-452-01 LABEL, INFORMATION [U/C]
4 * 4-084-452-11 LABEL, INFORMATION
[J, CH, NH, SH, EQ]
4 * 4-085-430-01 LABEL, INFORMATION (Midnight Gray)
[AEP]
4 * 4-085-430-11 LABEL, INFORMATION (TCO Gray)
[AEP]
5 1-900-805-55 WIRE ASSY, FOCUS LEAD
6 4-080-325-31 COVER, PIG TAIL
7 1-757-306-41 CABLE WITH CONNECTOR
8 0 1-251-382-31 INLET, AC (WITH NOISE FILTER)
9 4-052-345-01 SCREW, (3X8) (+K), TAPPING
10 0 1-453-377-11 TRANSFORMER ASSY, FLYBACK
(NX-4703/VQM4)
11 * A-1391-154-A N BOARD, COMPLETE [U/C, AEP]
11 * A-1391-171-A N BOARD, COMPLETE
[J, CH, NH, SH, EQ]
12 * A-1348-101-A D BOARD, COMPLETE [U/C, AEP]
12 * A-1348-125-A D BOARD, COMPLETE
[J, CH, NH, SH, EQ]
13 * A-1333-141-A DA BOARD, COMPLETE [U/C, AEP]
13 * A-1333-195-A DA BOARD, COMPLETE
[J, CH, NH, SH, EQ]
14 4-085-310-01 BAR, EXTENSION
15 1-251-642-13 CAP ASSY, HIGH-VOLTAGE
