Dell P992 - Picture Tube

P992 (E) 5-3
REF.NO. PART NO. DESCRIPTION REMARK

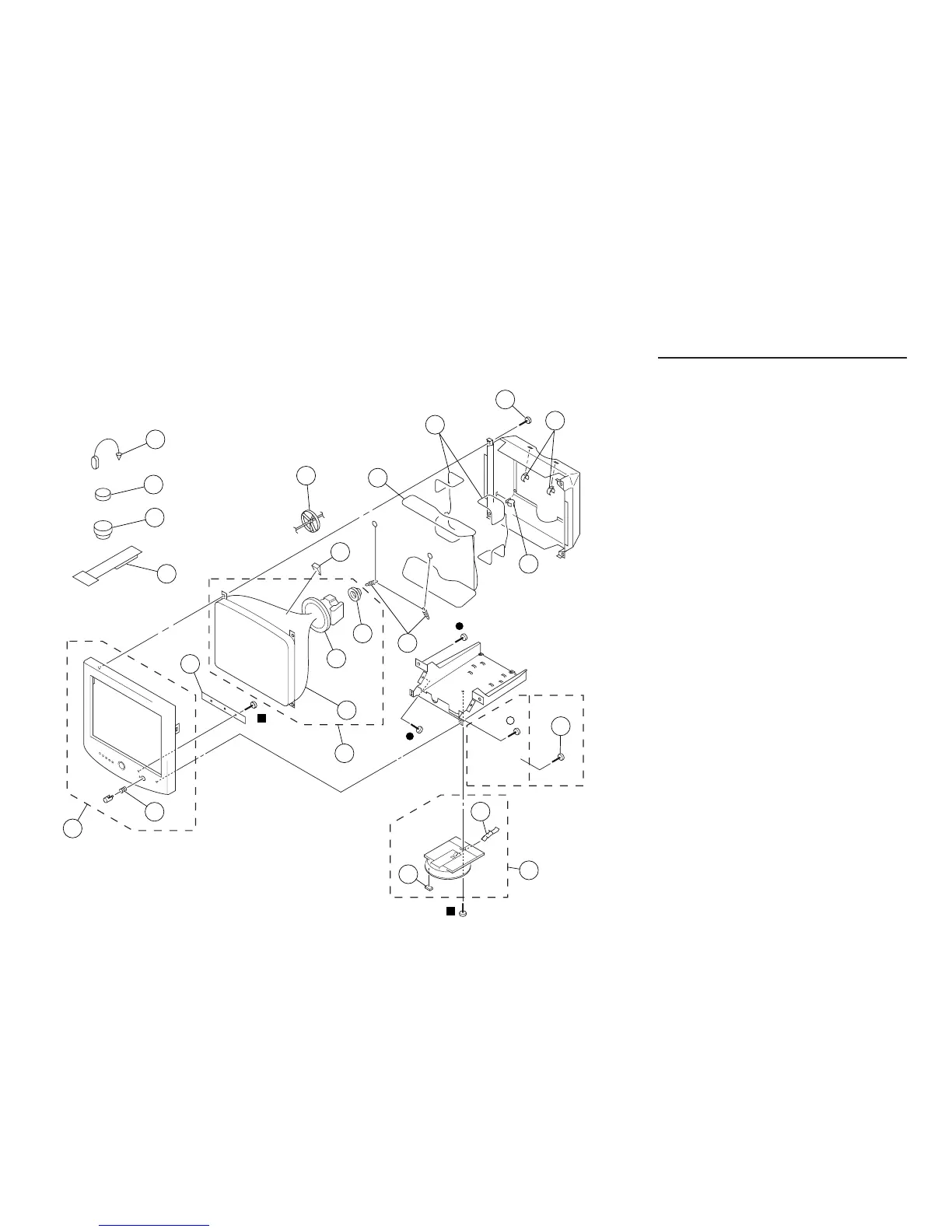

5-2. PICTURE TUBE
z 7-685-881-09 +BVTT 4X8
a 7-685-663-71 +BVTP 4X16
x 7-685-647-79 +BVTP 3X10
71
51
52
55
56
61
58
63
69
64
65
57
60
59
62
66
67
72
73
74
68
79
82
[AEP]
[U/C, J, CH,
NH, SH, EQ]
51 * X-4039-285-1 BEZEL ASSY [U/C] 52
51 X-4039-493-1 BEZEL ASSY [J, CH, NH, SH, EQ] 52
51 X-4200-764-1 BEZEL ASSY (Midnight Gray) [AEP] 52
51 X-4200-767-1 BEZEL ASSY (TCO Gray) [AEP] 52
52 4-081-905-01 SPRING COMPRESSION
53 * 4-085-313-01 BUTTON, POWER
55 * A-1377-019-A H4 BOARD, COMPLETE [U/C, AEP]
55 * A-1377-049-A H4 BOARD, COMPLETE
[J, CH, NH, SH, EQ]
56 0 8-736-413-15 PICTURE TUBE 19TKC (W-ARAS)
[U/C, AEP, CH, NH]
56 0 8-736-413-10 PICTURE TUBE 19TKC (W-ARAS) [J]
56 0 8-736-426-05 PICTURE TUBE 19TKC
(W-ARAS SOUTHERN) [SH, EQ]
57 3-704-372-01 HOLDER, HV CABLE
58 2-162-100-21 SPACER, DY
59 0 8-451-518-11 DEFRECTION YOKE Y19TKL-M
60 0 1-452-923-51 NECK ASSEMBLY
61 0 8-734-065-06 ITC ASSY (19TKC-R7)
[U/C, J, AEP, CH, NH]
56, 59, 60
61 0 8-734-066-06 ITC ASSY (19TKC-RS7) [SH]56, 59, 60
61 0 8-734-064-06 ITC ASSY (19TKC-RS6) [EQ]56, 59, 60
62 * 4-047-316-01 SPRING, EXTENTION
63 0 1-419-285-21 COIL, DEGAUSSING
64 4-071-175-01 HOLDER, DGC
65 4-365-808-01 SCREW (5), TAPPING
[J, AEP, CH, NH, SH, EQ]
65 4-203-648-01 SCREW (5), TAPPING [AEP]
66 4-041-021-02 HOLDER, DEGAUSE COIL
67 1-419-129-51 COIL, LANDING CORRECTION
68 X-4039-381-1 BASE ASSY, STAND [U/C] 69, 79
68 X-4038-990-1 BASE ASSY, STAND
[J, CH, NH, SH, EQ]
69, 79
68 X-4039-010-1 BASE ASSY, STAND (Midnight Gray)
[AEP]
69, 79
68 X-4039-340-1 BASE ASSY, STAND (TCO Gray)
[AEP]
69, 79
69 * 4-061-996-01 CUSHION
71 4-308-870-00 CLIP, LEAD WIRE
72 1-452-032-00 MAGNET, DISK; 10mmf
73 1-452-094-00 MAGNET, ROTATABLE DISK; 15mmf
74 4-051-736-21 PIECE A (90), CORRECT
82 4-039-358-01 SCREW (4X16), (+) BV TAPPING
[AEP]
REF.NO. PART NO. DESCRIPTION REMARK
