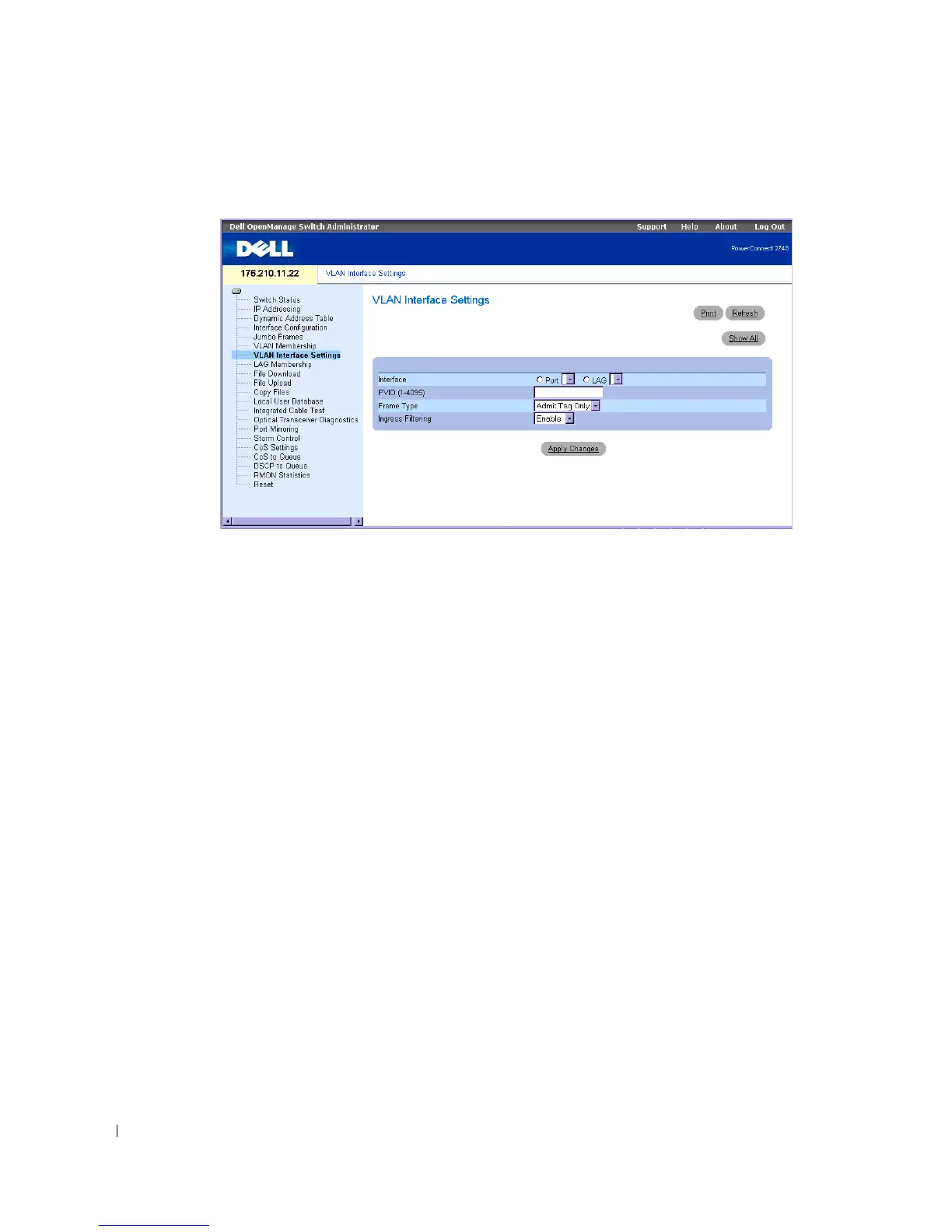

Figure 6-6. VLAN Interface Settings
Interface
— Indicates the interface number of the port, LAG, or VLAN that is configured on the
switch.
PVID (1-4095)
— Assigns a VLAN ID to untagged packets. The possible field values are 1-4094.
VLAN 1 is used as the default VLAN. The default VLAN is only used as a port default VLAN ID
(PVID). VLAN 1 cannot be deleted from the system. VLAN 4095 is defined as the discard VLAN,
thus the packets classified to this VLAN are dropped. All ports must have a PVID defined; if no
other PVID value is configured, the default VLAN’s VID will be used.
Frame Type
— Packet type accepted by the LAG
. The possible values are:
Admit Tag Only
— Only tagged packets are accepted by the interface.
Admit All
— Tagged and untagged packets are accepted by the interface.
Ingress Filtering
— Enables or disables incoming filtering by the interface. Ingress filtering
discards packets which do not include an ingress port
.
Updating the VLAN Interface Settings
1
Open the
VLAN Interface Settings
page.
2
Select the interface (port or LAG)
3
Click
Apply Changes.
The switch
VLAN Port Settings
parameter(s)
change(s) is applied
.
Configuring LAG Membership
The switch supports six LAGs per system and four ports per LAG. When a port is added to a LAG,
it acquires the properties of the LAG.
