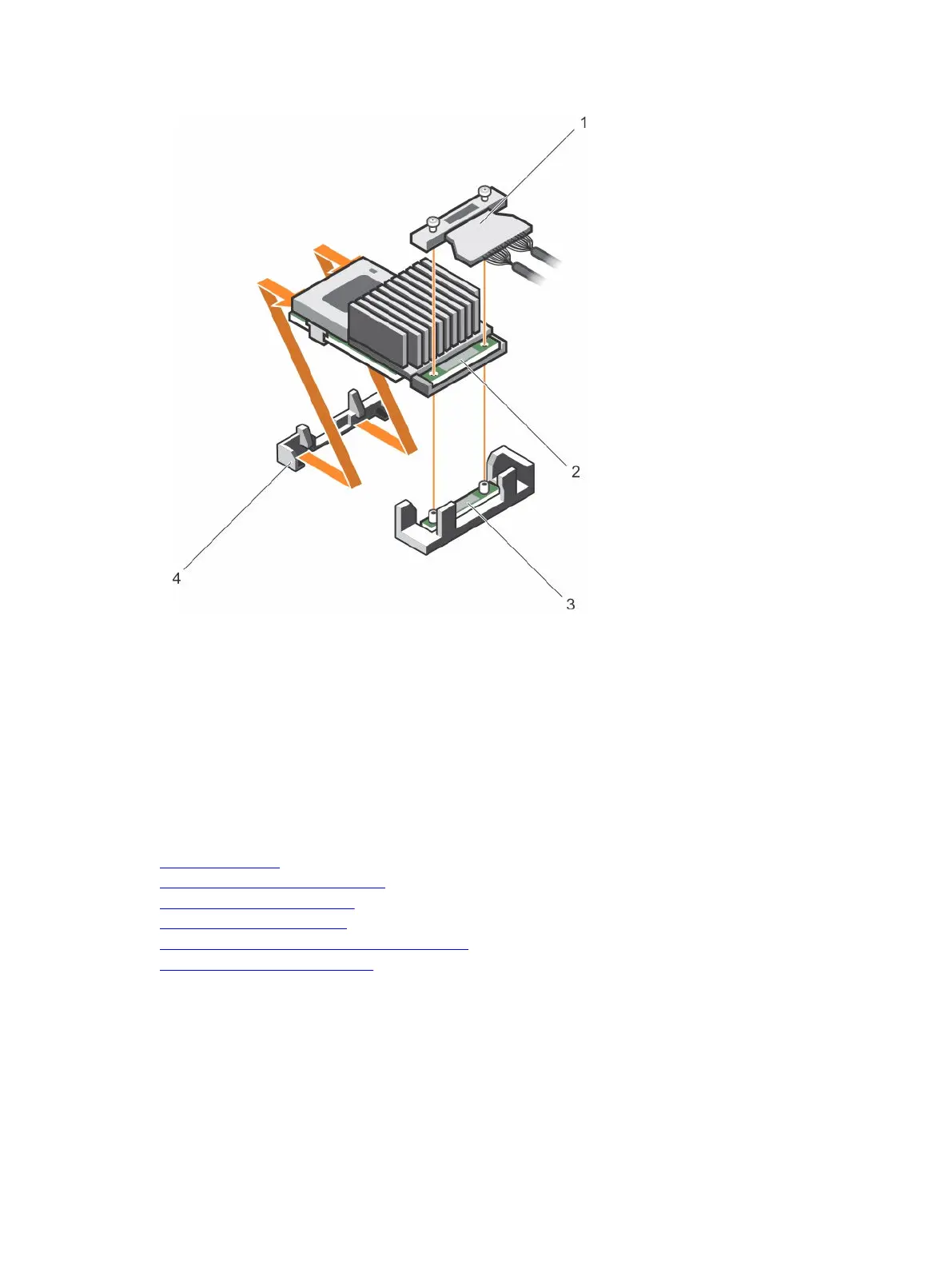

Figure 62. Removing the integrated storage controller card
1. integrated storage controller cable 2. integrated storage controller card
3. integrated storage controller card
connector on the system board
4. integrated storage controller card
holder
Next steps
1. Install the cooling shroud.
2. Installing the integrated storage controller card.
3. Follow the procedure listed in the After working inside your system section.
Related Links
Safety instructions
Before working inside your system
Removing the cooling shroud
Installing the cooling shroud
Installing the integrated storage controller card
After working inside your system
