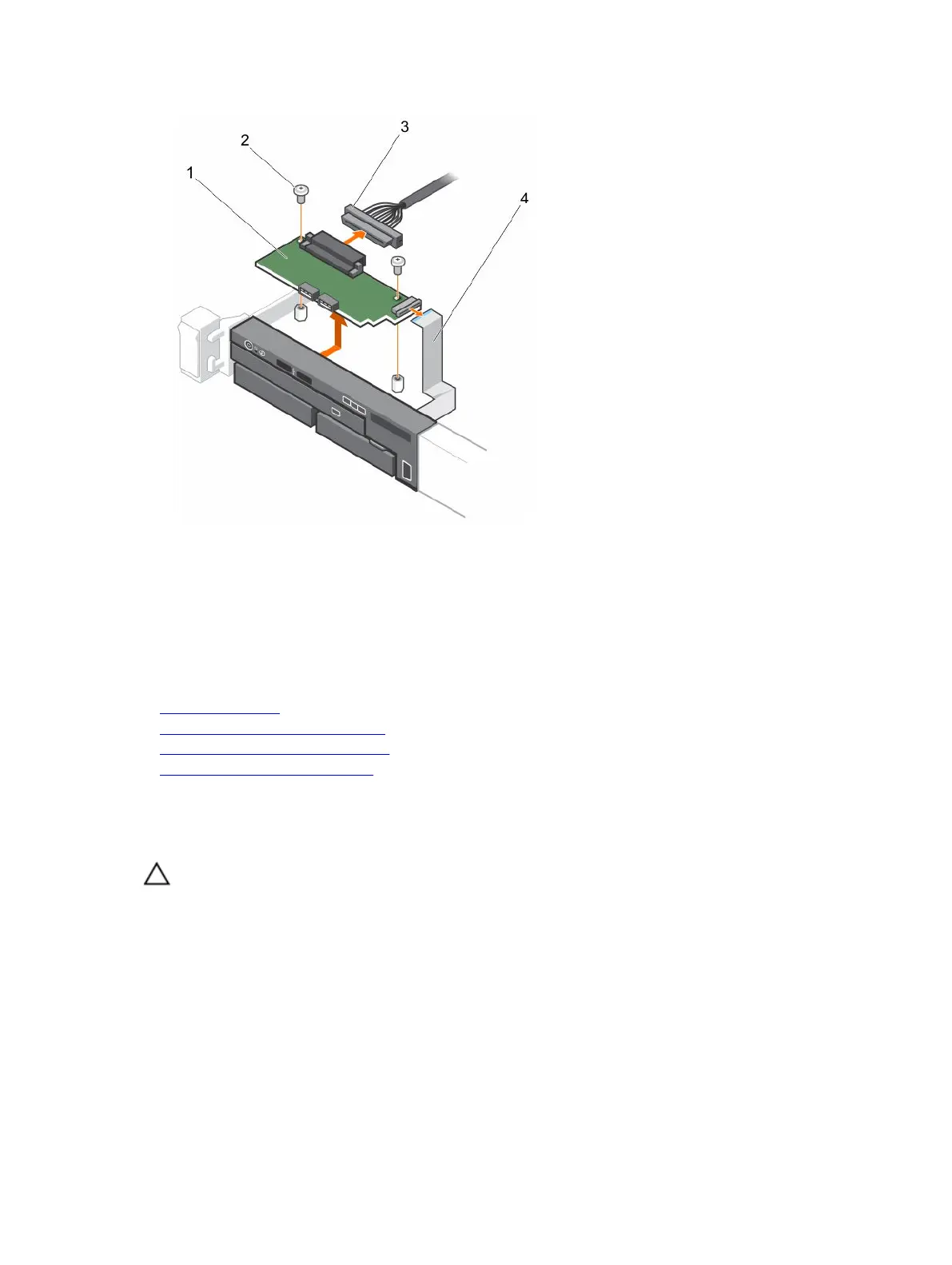

Figure 95. Removing the control panel module—eight hard-drive chassis
1. control panel module 2. screw (2)
3. control panel module connector cable 4. display module cable
Next steps
Follow the procedure listed in the After working inside your system section.
Related Links
Safety instructions
Before working inside your system
Installing the control panel module
After working inside your system
Installing the control panel module
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
Steps
1. For a 3.5 inch cabled hard drive system:
a. Insert the LED panel into the slot in the chassis.
