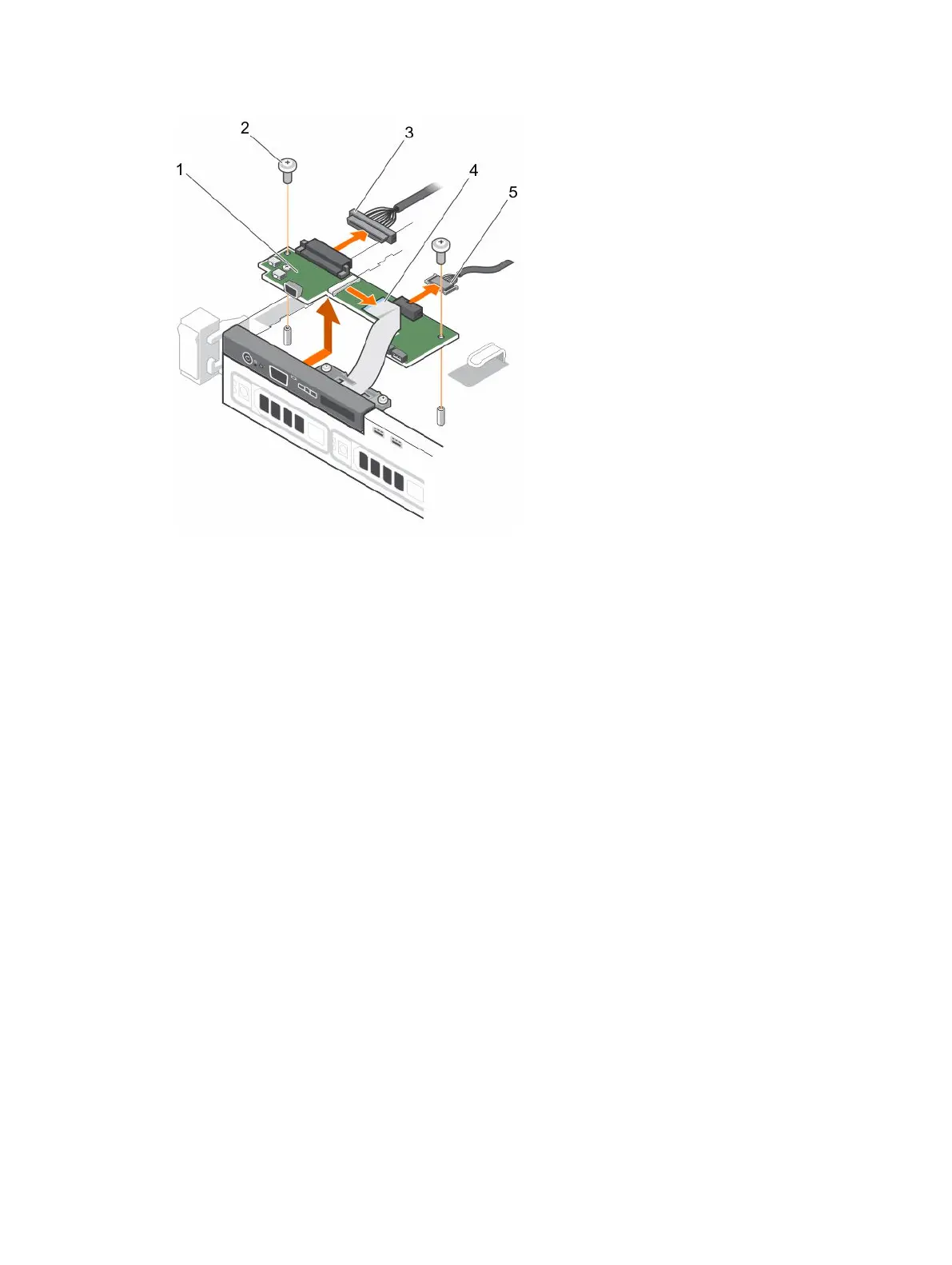

Figure 94. Removing the control panel module—four hard-drive chassis
1. control panel module 2. control panel module screws (2)
3. control panel module connector cable 4. display module cable
5. USB connector cable
