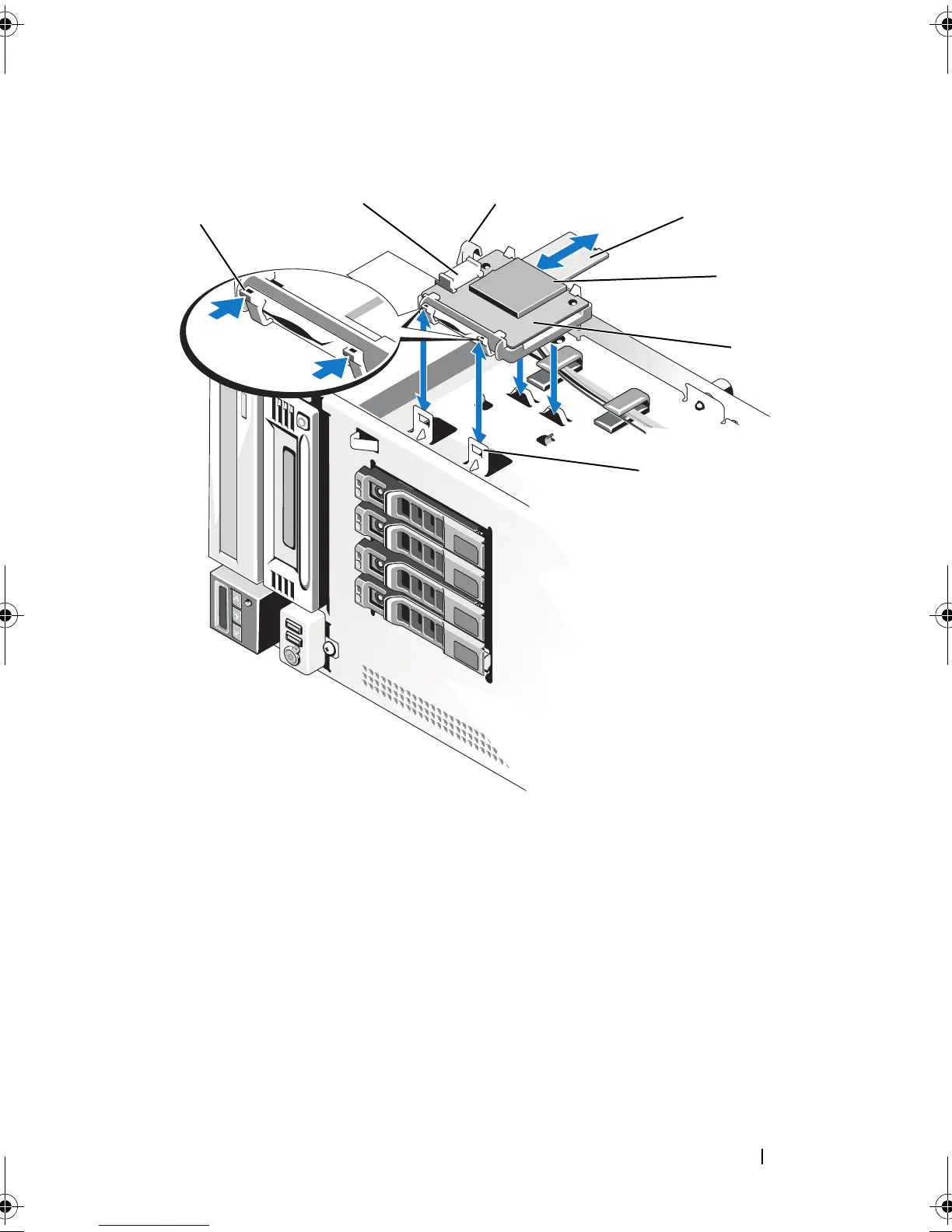

Figure 3-11. Installing the Internal SD Module
6 Connect the internal SD module cable between the connector on the
module and the J_SDCARD connector on the system board. See
Figure 6-1 for the location of the connector on the system board.
7 Install the cooling shroud. See "Installing the Cooling Shroud."
1 release tab 2 internal SD module cable connector
3 latch 4 SD flash card
5 SD card slot (SD connector) 6 internal SD module
7 hooks (2)
