DellPowerVault™TL4000/TL2000FailoverGuide


5|Page 12/31/09 version 2.0

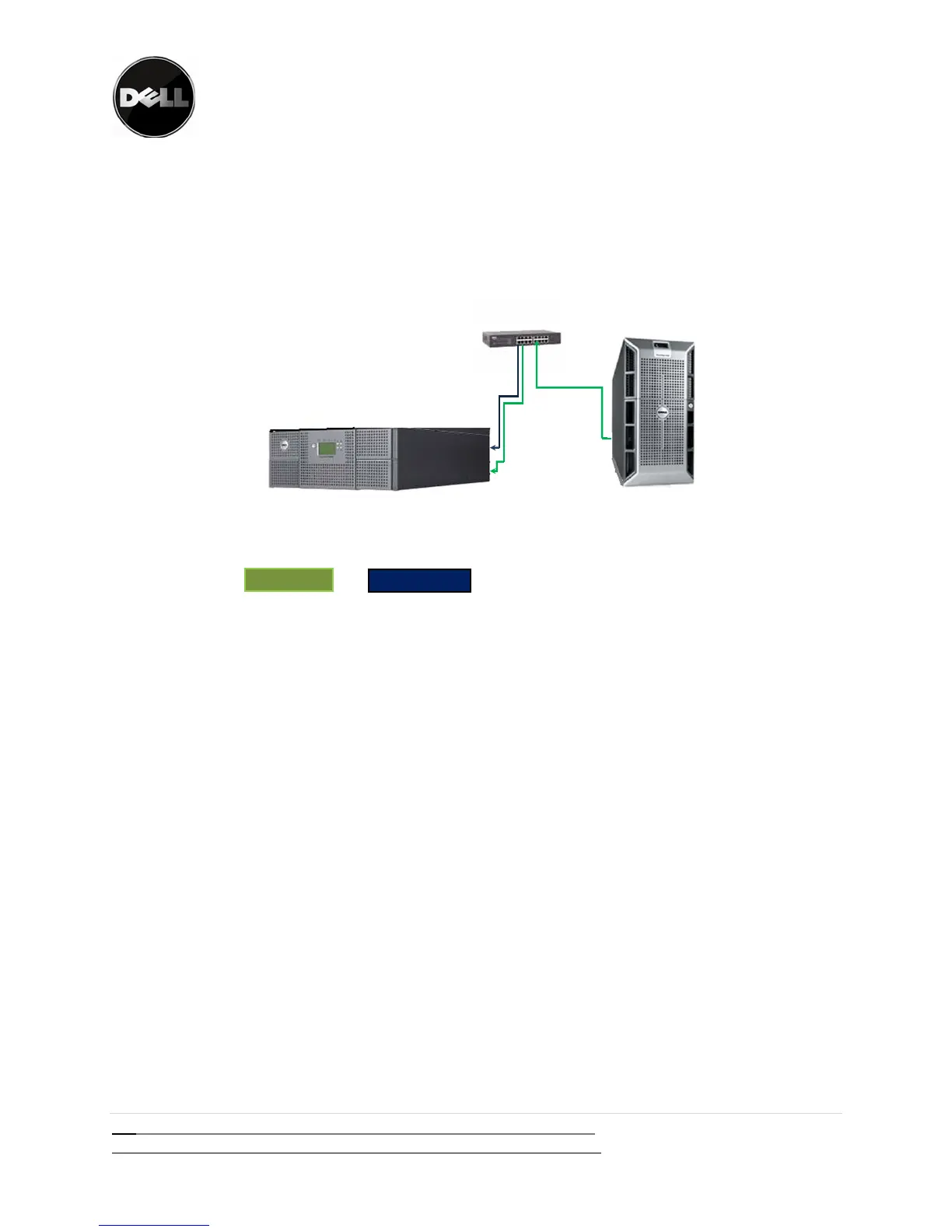

Failoverconfiguration
(onehost,oneswitch,twoFCdrives)
MainPath
Failover Path

Figure1:ReferenceConfiguration1
FailoverReferenceConfiguration2:
OneHostwithonedualportFibreChannelHBA,twoFibreChannelswitchesandoneDell
PowerVault™withtwoFibreChanneldrives
Inthisconfiguration,failoveroccursifoneofthefollowingoccurs:
‐Oneofthedrivesinthelibraryfails(hardwarefailureordriveisdisconnectedfromtheFibre
Channelswitch)
‐Oneoftheswitchesfails
‐OneoftheHBAportsfails
ThephysicalconnectionofthisconfigurationisshowninFigure2.
ImportantNote:DellRecommendsFibreChanneldrivestobesamegeneration.ForHeterogonous
configurationsrefertosection:Heterogonous ValidatedConfigurations


Alwaysrefertowww.dell.com\supportforlatestdocumentationandupdates


Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
