Adding and Replacing Parts
103
Coin-Cell Battery
CAUTION:
Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).
NOTICE:
To help prevent damage to the system board, you must remove the battery from the battery bay before
you begin working inside the computer.
1
Follow the procedures in "Before You Begin" on page 87.
2
Remove the hinge cover. See "Hinge Cover" on page 97.
3
Remove the keyboard. See "Keyboard" on page 98.
4
Insert a plastic scribe into the guide on the side of the coin-cell battery compartment, and pop the
battery out.

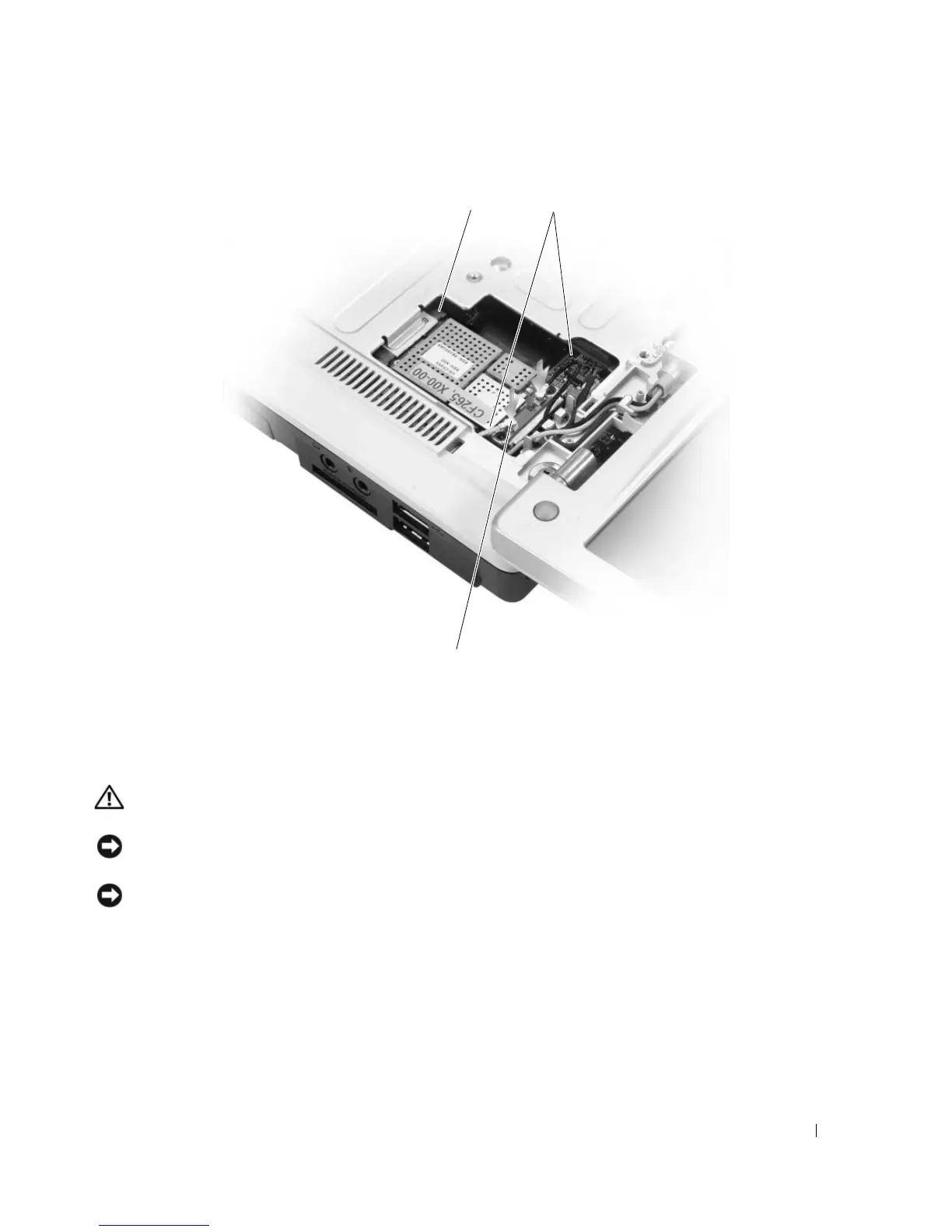

1 system board connector 2 antenna cables (2) 3 antenna cable connectors (2)
1 2
3
