Dell Precision 3431 Small Form Factor Service Manual

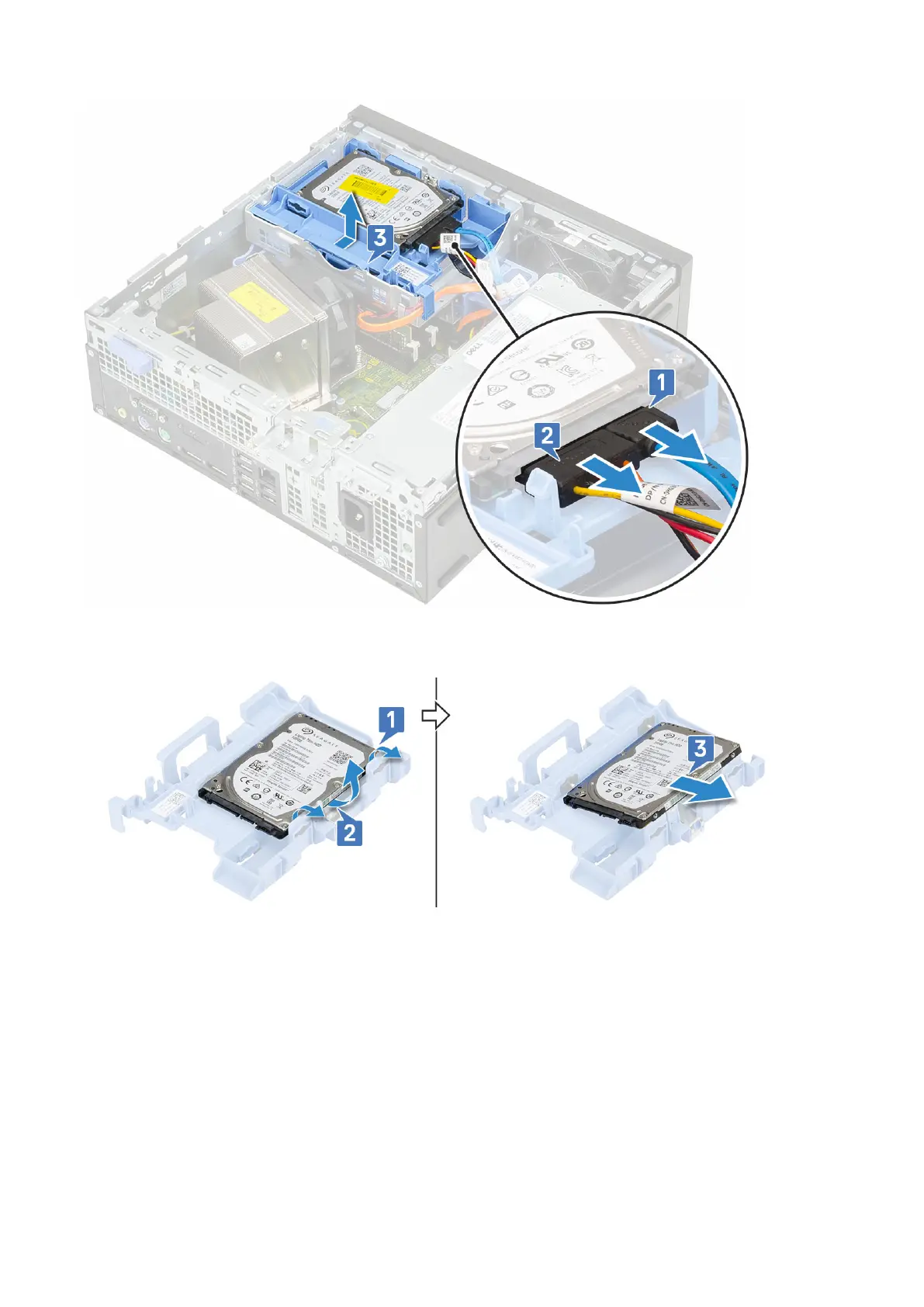

4. To remove the 2.5 inch hard drive from the assembly bracket:
a) Pull one side of the hard drive bracket to disengage the pins on the bracket from the slots on the hard drive [1,2].
b) Lift the hard drive out of the hard drive bracket [3].
5. To remove the 3.5 inch hard drive from the assembly bracket:
a) Pull one side of the hard drive bracket to disengage the pins on the bracket from the slots on the hard drive [1,2].
b) Lift the hard drive out of the hard drive bracket [3].
26
Removing and Installing components
