Dell Precision 3431 Small Form Factor Service Manual

8. Install the:
a) Front bezel
b) Side cover
9. Follow the procedure in After working inside your computer.
Optical drive
Removing the optical drive
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Side cover
b) Front bezel

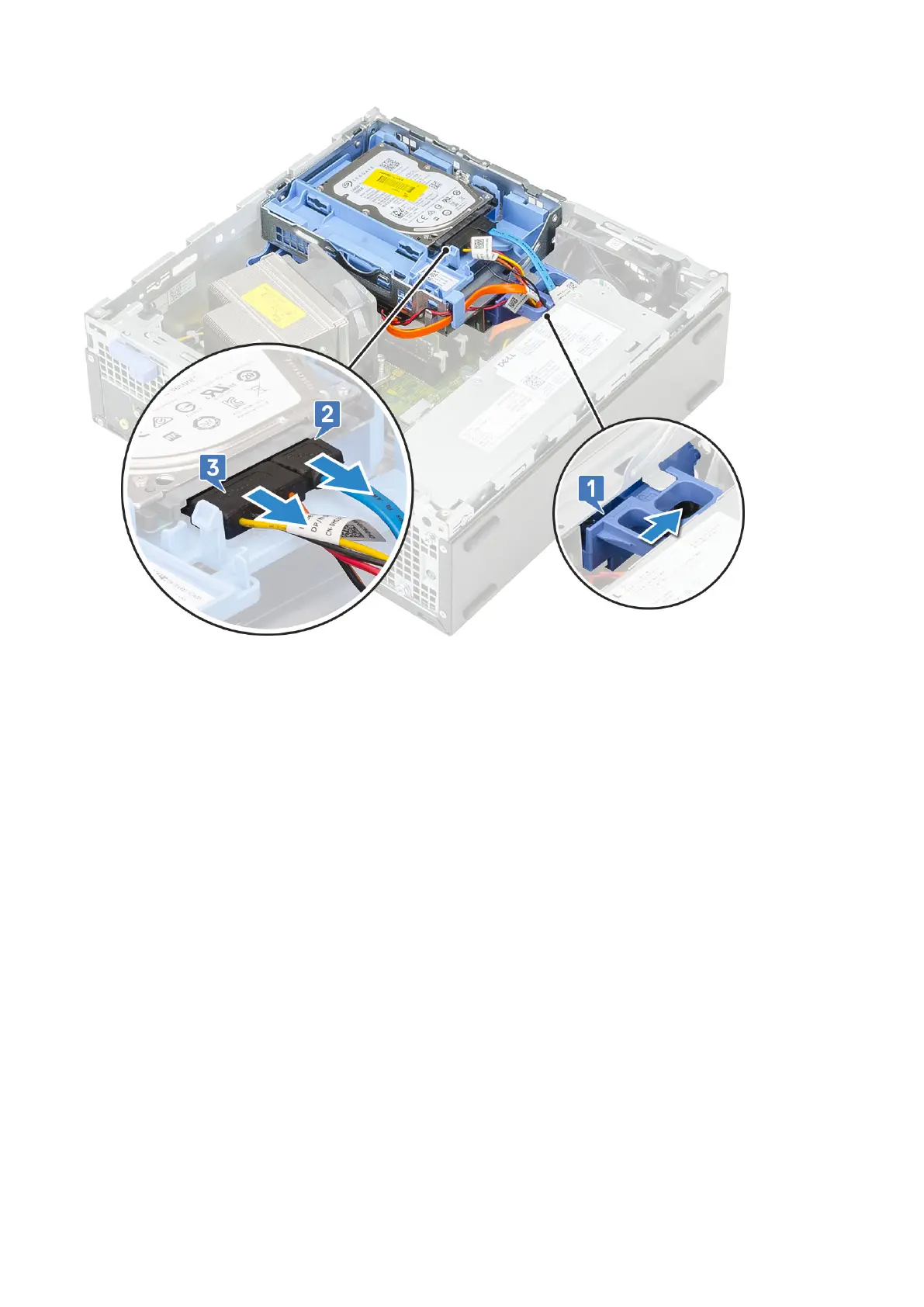

3. To remove the optical drive:
a) Disconnect the hard drive data cable and power cable from the connectors on the hard drive [1, 2].
b) Slide the release tab to unlock the hard drive and optical module [3].
c) Lift the hard drive and optical module [4].
Removing and Installing components
35
