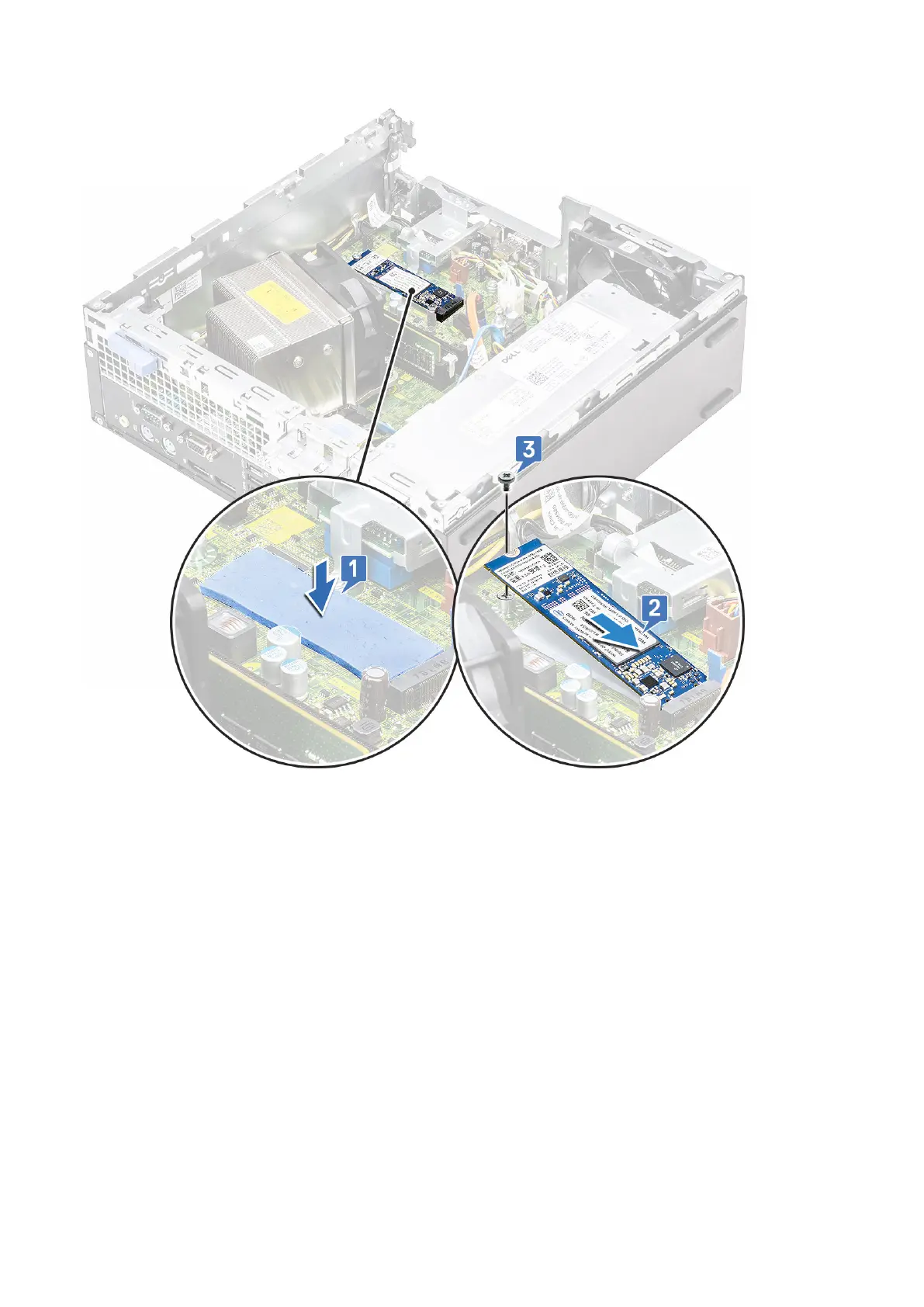

4. Install the:
a) Hard drive and optical drive module
b) Front bezel
c) Side cover
5. Follow the procedure in After working inside your computer.
SD card reader - optional
Removing the SD card reader
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Side cover
b) Front bezel
c) Hard drive and optical drive module
3. To remove the SD card reader:
a) Unroute the power cables from the retention clip on the SD card reader [1].
b) Remove the two (M3) screws that secures the SD card reader to the I/O panel and the system board [2].
Removing and Installing components
55
