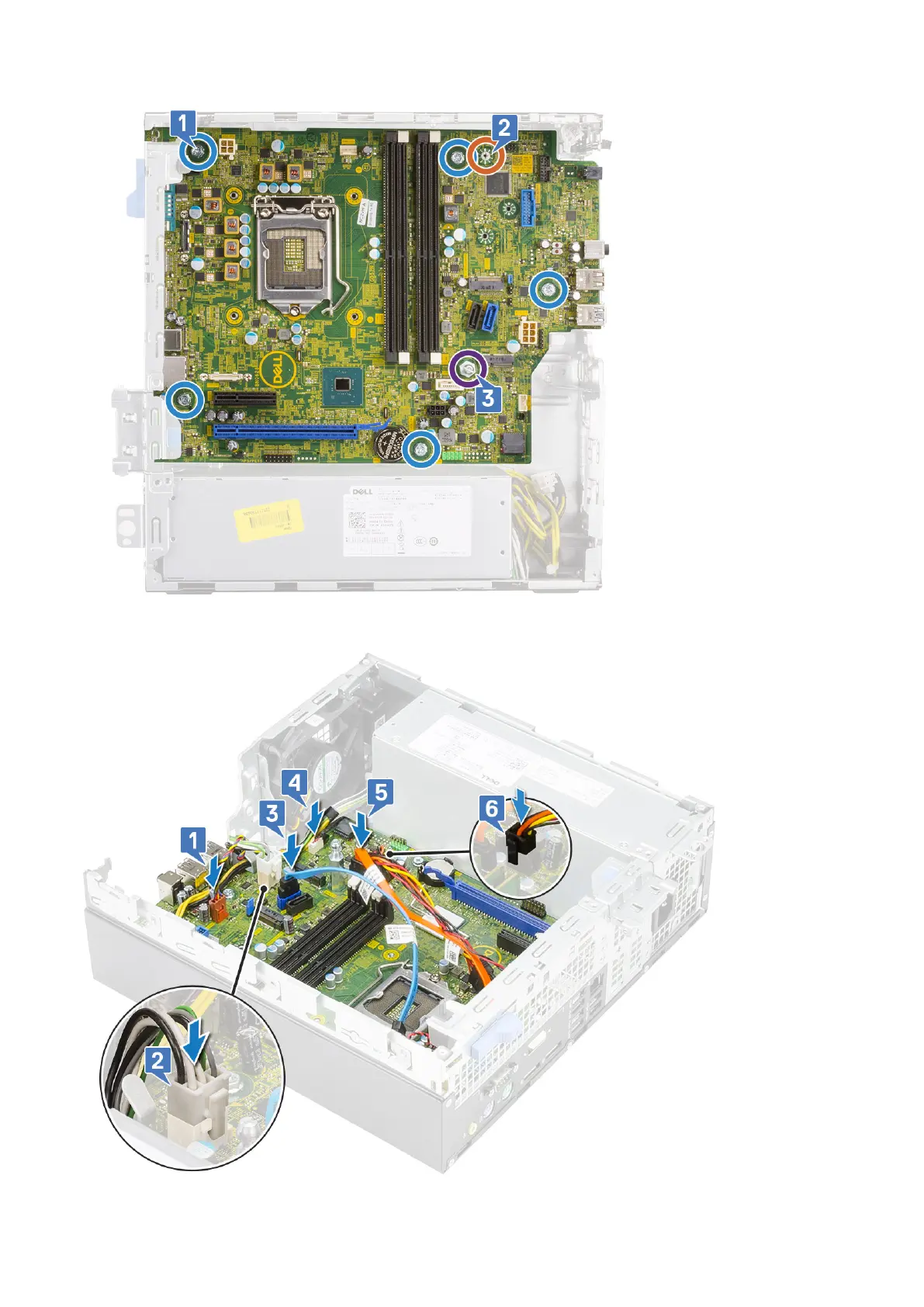

4. Align the cables with the pins on connectors on the system board and connect intrusion switch cable [1], PSU power cable [2], data
cable [3], system fan cable [4], SATA cable [5], SATA power cable [6] to the system board:
88
Removing and Installing components
