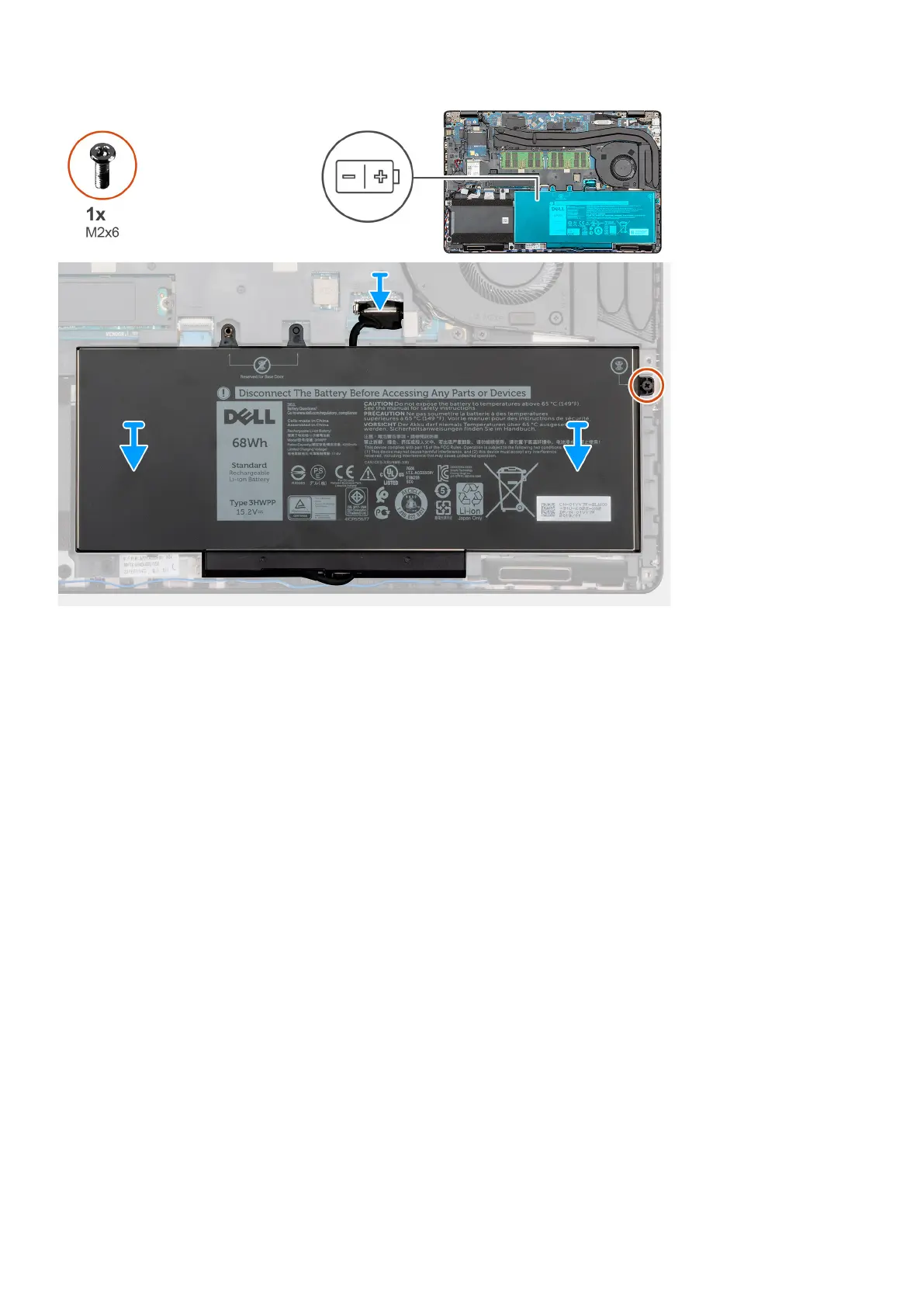

Steps
1. Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on
the palm-rest and keyboard assembly.
2. Replace the single (M2x6) captive screw that secures the battery to the computer.
3. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The figure indicates the location of the memory module and provides a visual representation of the removal procedure.
28
Disassembly and reassembly
