5. Remove the display bezel.
About this task

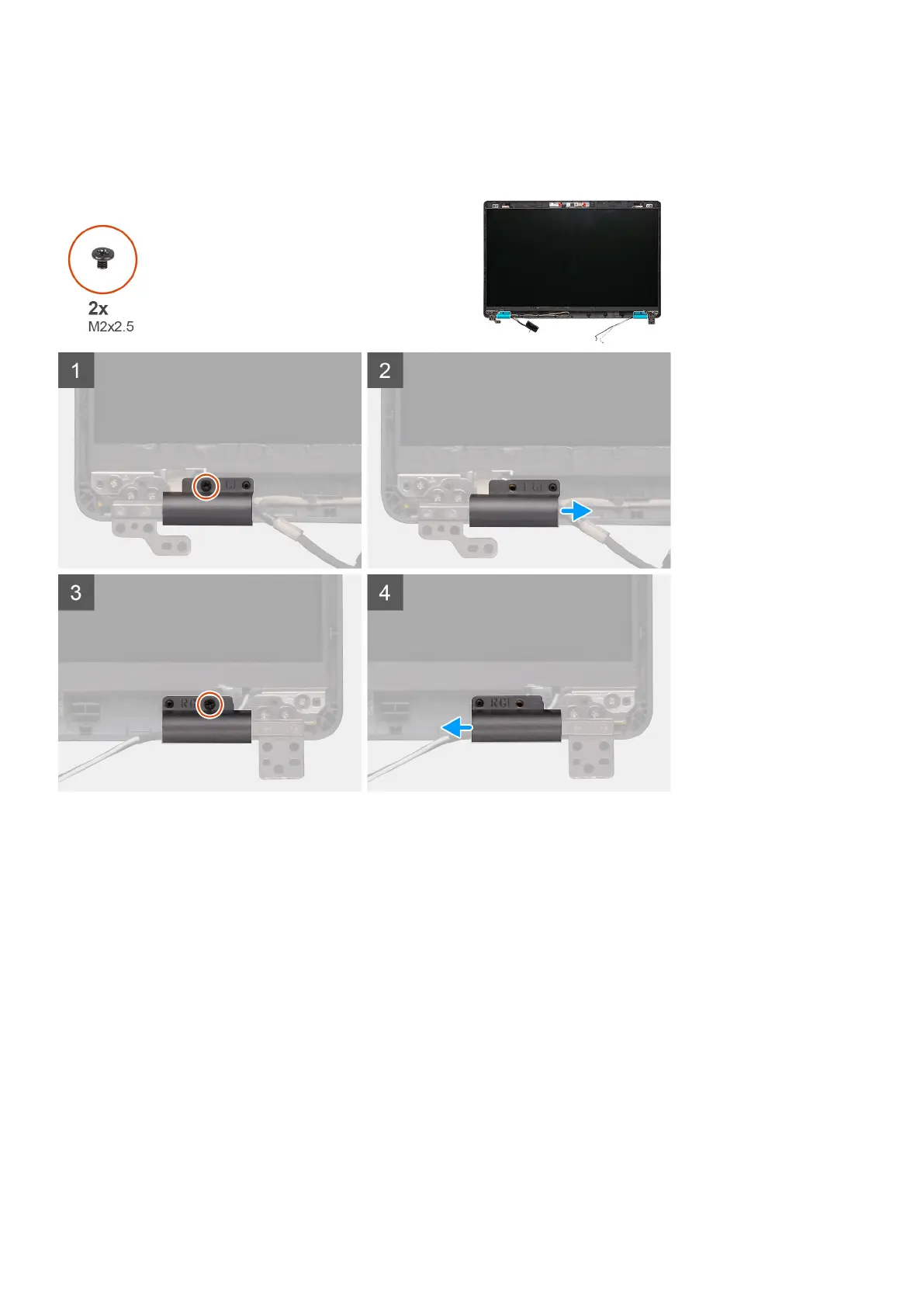

The figure indicates the location of the hinge caps and provides a visual representation of the removal procedure.
Steps
1. Locate the hinge cap on the display back cover.
2. Remove the two (M2x2.5) screws that secure the hinge caps to the chassis.
3. Pinch the hinge caps to release the hinge caps from the ribs on the display back cover and then slide inwards to remove the
hinge caps from the display hinge.
Installing the hinge caps
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the hinge caps and provides a visual representation of the installation procedure.
