Dell Precision 3541 - Inner Frame; Removing the Inner Frame

Steps

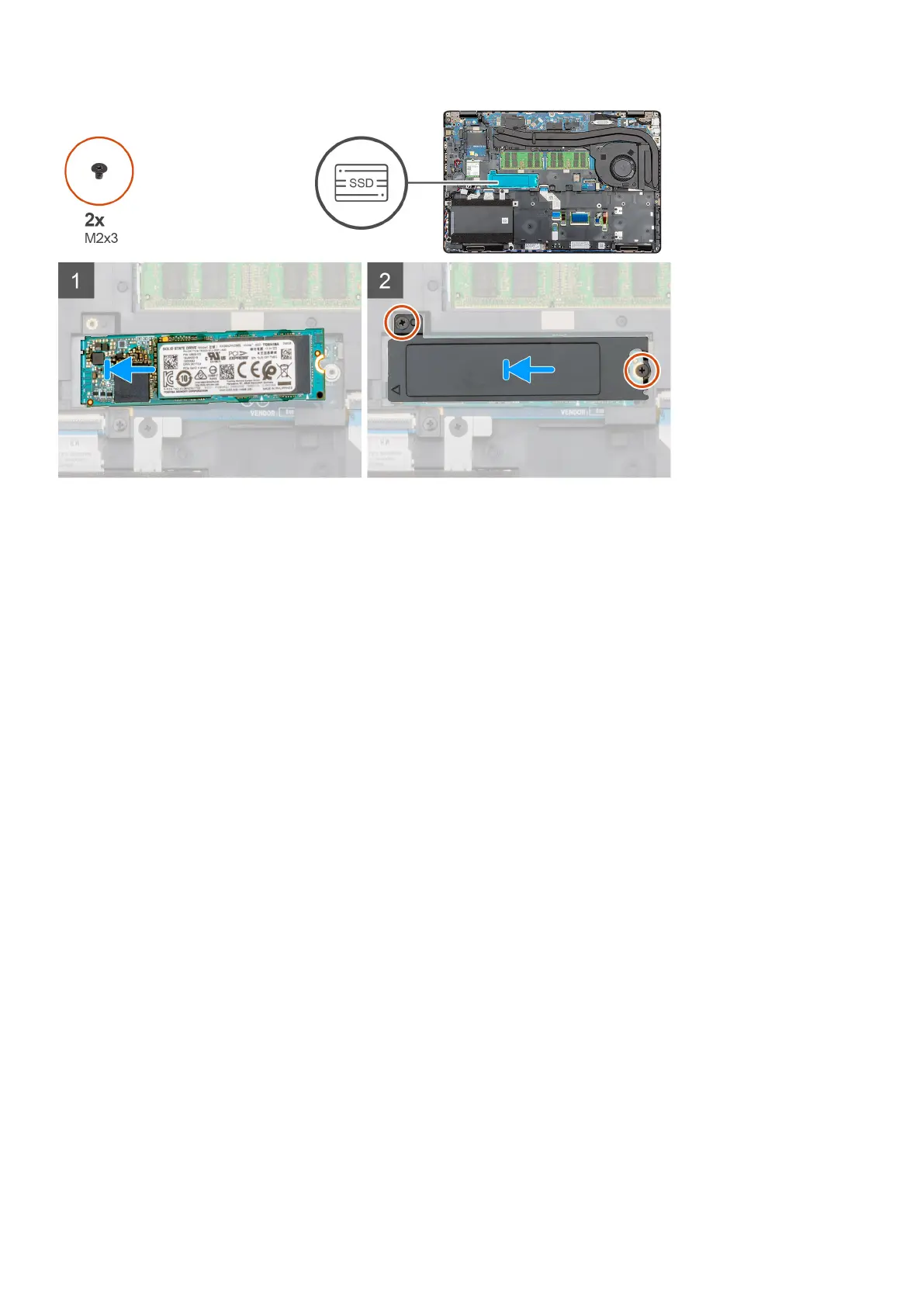

1. Locate the SSD slot on your computer.
2. Slide the SSD into the slot.
3. Place the SSD thermal plate over the SSD module.
4. Replace the two (M2x3) screws to secure the SSD module to the computer.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Inner frame
Removing the inner frame
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the solid state drive.
5. Remove the HDD.
6. Remove the WLAN card.
7. Remove the WWAN card.
About this task
The figure indicates the location of the inner frame and provides a visual representation of the removal procedure.
42
Disassembly and reassembly
