5. Remove the HDD.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the inner frame.
About this task

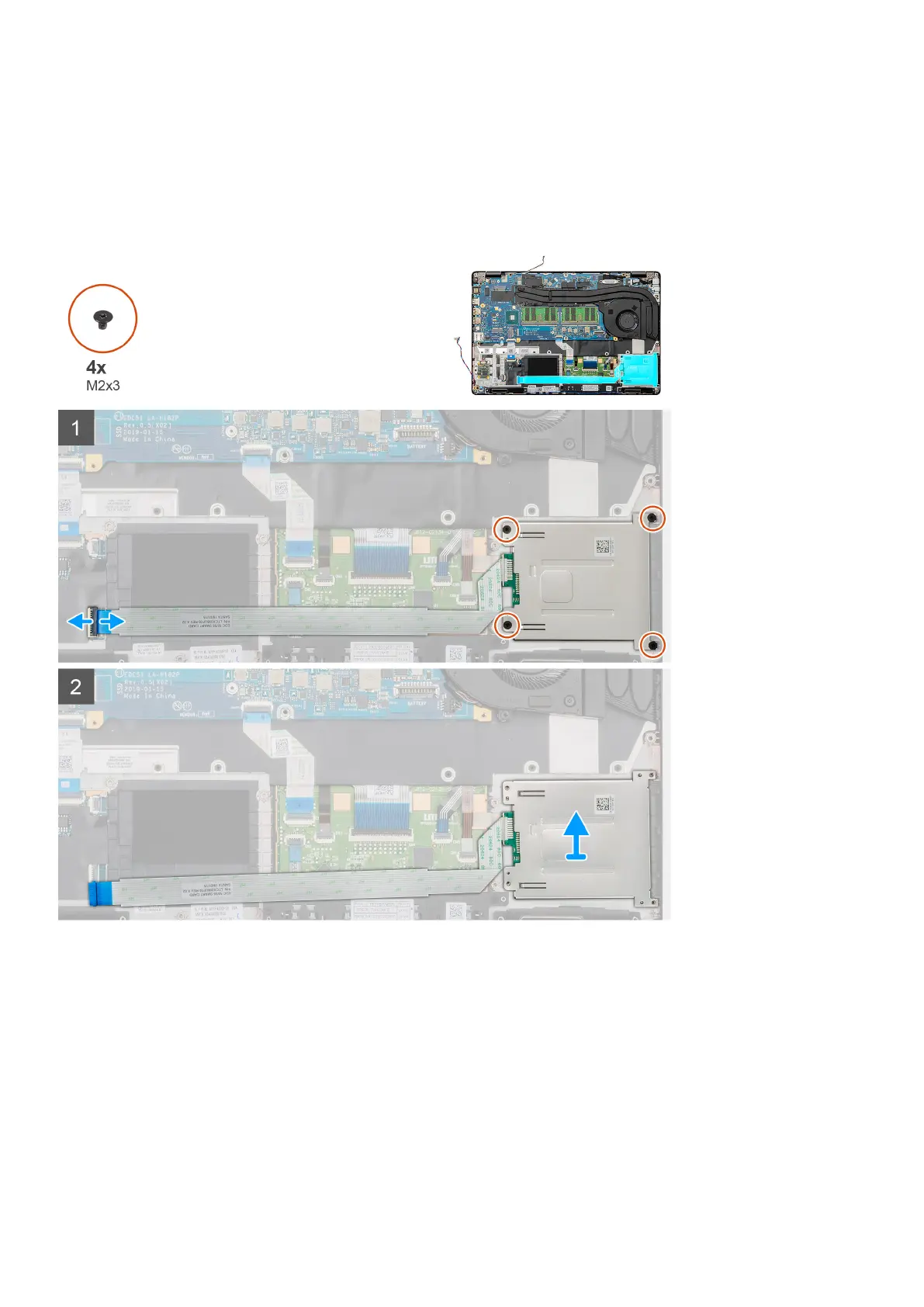

The figure indicates the location of the smart card reader board and provides a visual representation of the removal procedure.
Steps
1. Locate the Smart card reader board on your computer.
2. Open the latch and disconnect the Smart card reader board cable from the system board.
3. Remove the four (M2X3) screws that secure the smart card reader board to the computer.
4. Lift the smart card reader module out of the computer.
Installing the smart card reader board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Disassembly and reassembly
