Steps
1. Locate the Keyboard slot on your computer.

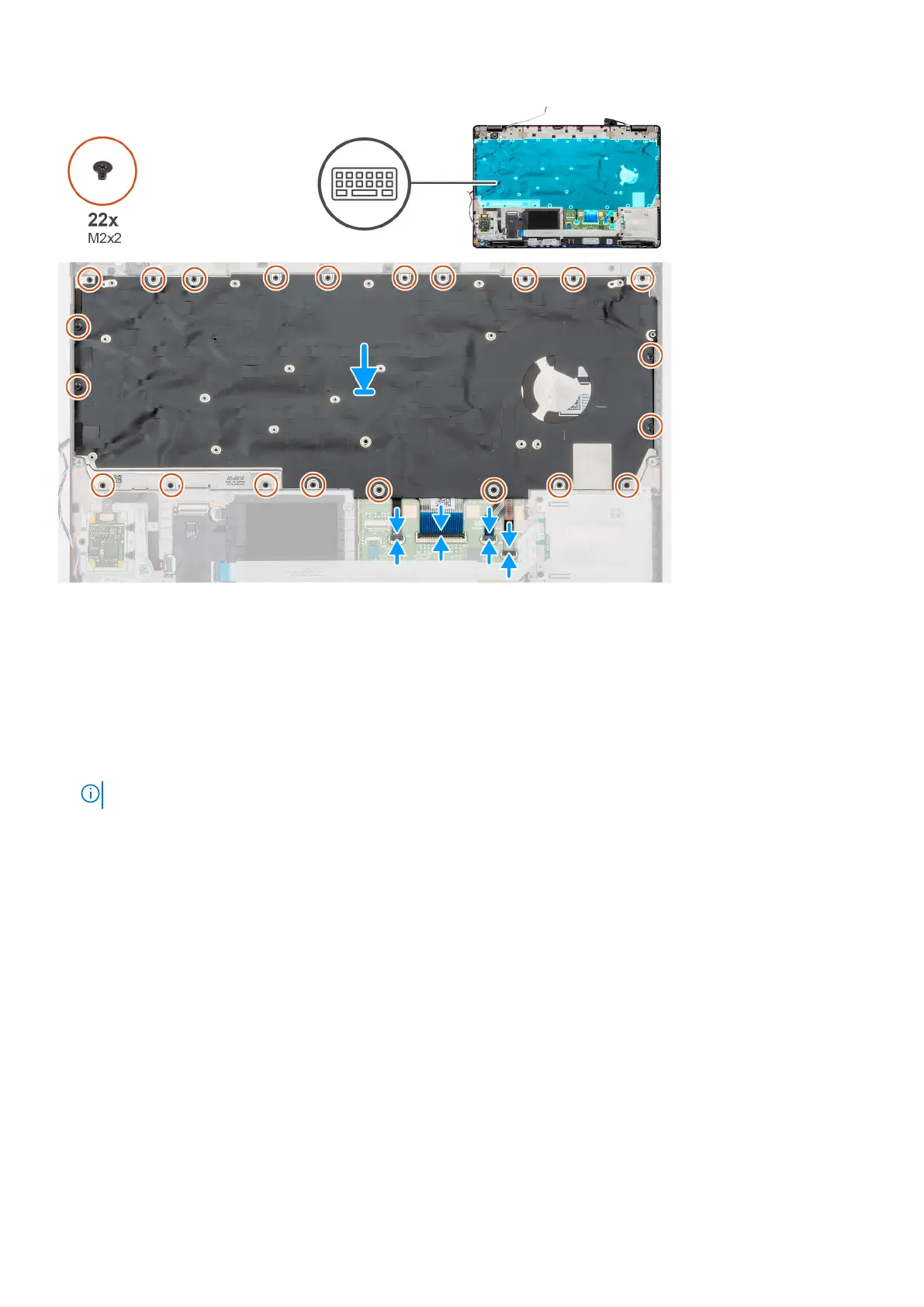

2. Align and place the keyboard into the slot on your computer.
3. Install the 22 (M2x2) screws that secure the keyboard to the chassis of the computer.
4. Connect the keyboard, keyboard backlit cables on to the connector on the palmrest.
Next steps
1. Install the system board.
NOTE: System board can be removed with heatsink attached.
2. Install the memory module
3. Install the inner frame.
4. Install the WWAN card.
5. Install the WLAN card.
6. Install the HDD.
7. Install the solid state drive.
8. Install the battery.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.
Keyboard bracket
Removing the keyboard bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
