Steps

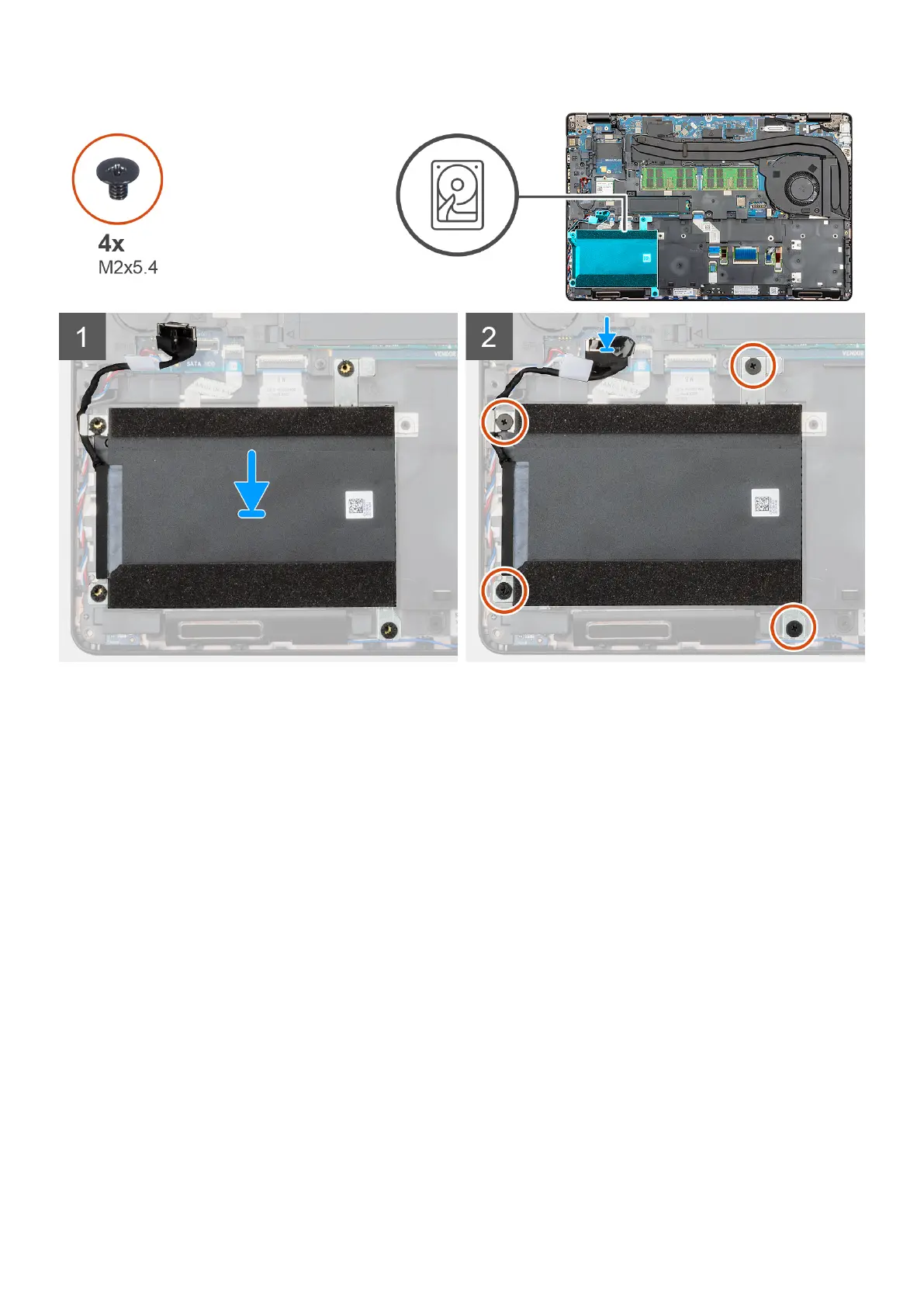

1. Locate the system board slot on your computer.
2. Align and install the HDD into the computer
3. Install the four (M2x5.4) screws that secure the HDD to the computer.
4. Connect the HDD cable on to the connector on the system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Coin-cell battery
Removing the Coin-cell
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The figure indicates the location of the Coin-cell and provides a visual representation of the removal procedure.
36
Disassembly and reassembly
