About this task

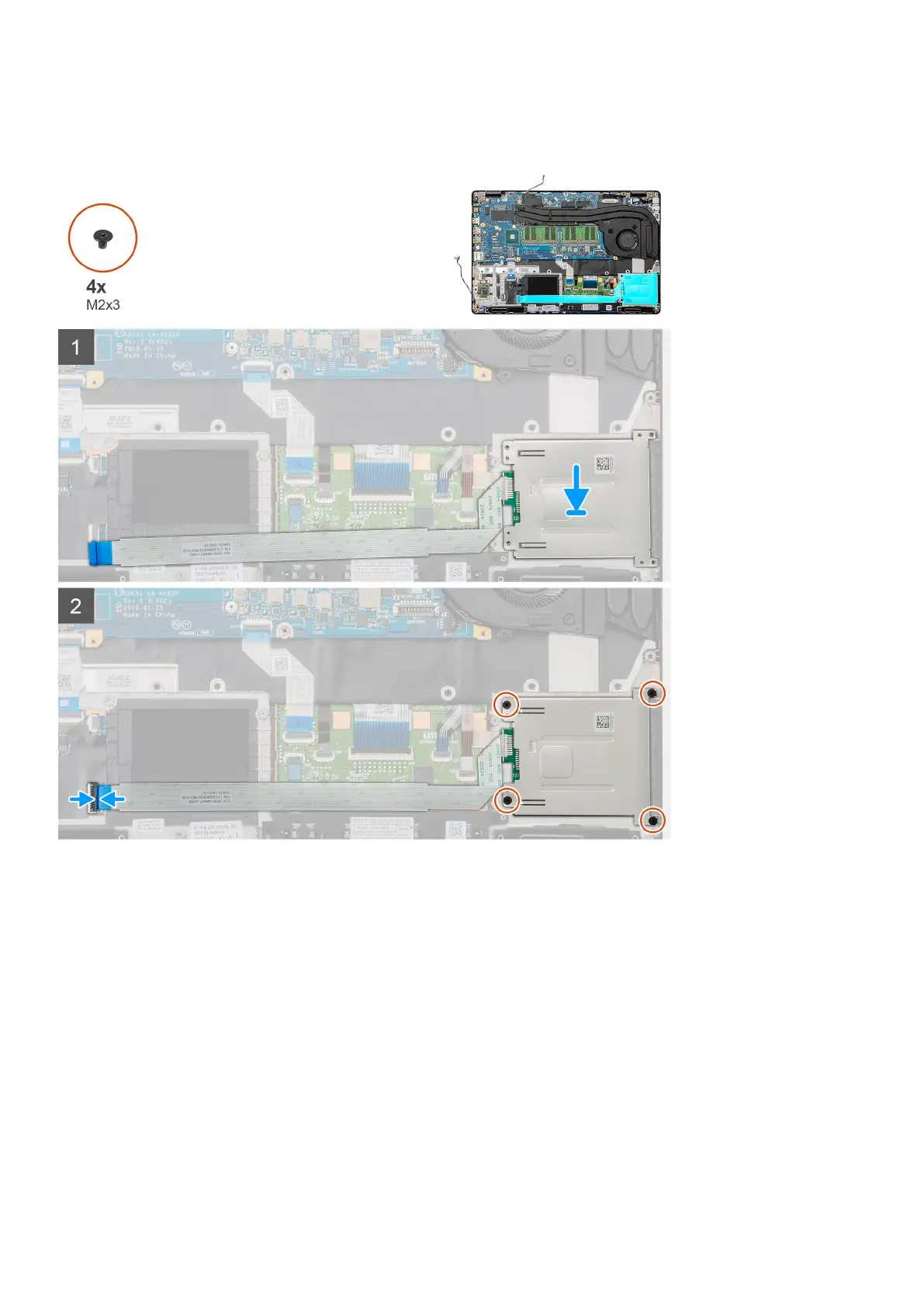

The figure indicates the location of the smart card reader board and provides a visual representation of the installation
procedure.
Steps
1. Locate the smart card reader board slot on your computer.
2. Align and place the smart card reader board into the slot on your computer.
3. Install the four (M2X3) screws that secure the smart card reader board to the computer.
4. Connect the smart card reader cable on to the connector on the system board and lock the latch.
Next steps
1. Install the inner frame.
2. Install the WWAN card.
3. Install the WLAN card.
4. Install the HDD.
5. Install the solid state drive.
6. Install the battery.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
50
