Steps

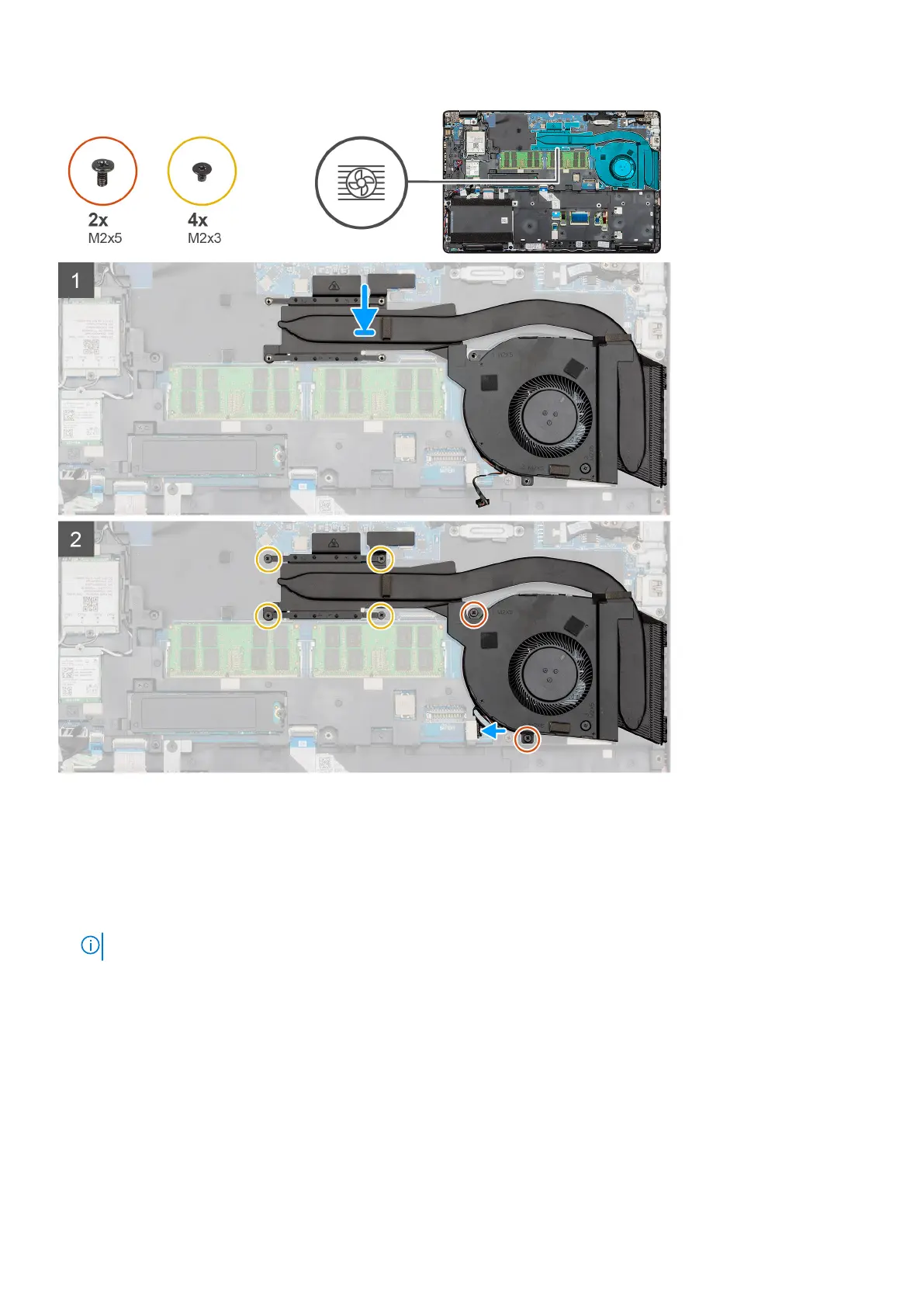

1. Locate the heatsink slot on your computer.
2. Align and place the heatsink fan on to the heatsink assembly.
3. Install the single (M2x5) screw that secures the heatsink fan to the heatsink assembly.
4. Align and place the heatsink assembly into the slot of your computer.
5. Install the two (M2x5) and four (M2x3) captive screws to secure the heatsink assembly to the computer.
NOTE: Install the screws as per the callout on the heatsink.
6. Connect the heatsink fan cable on to the connector on the system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
