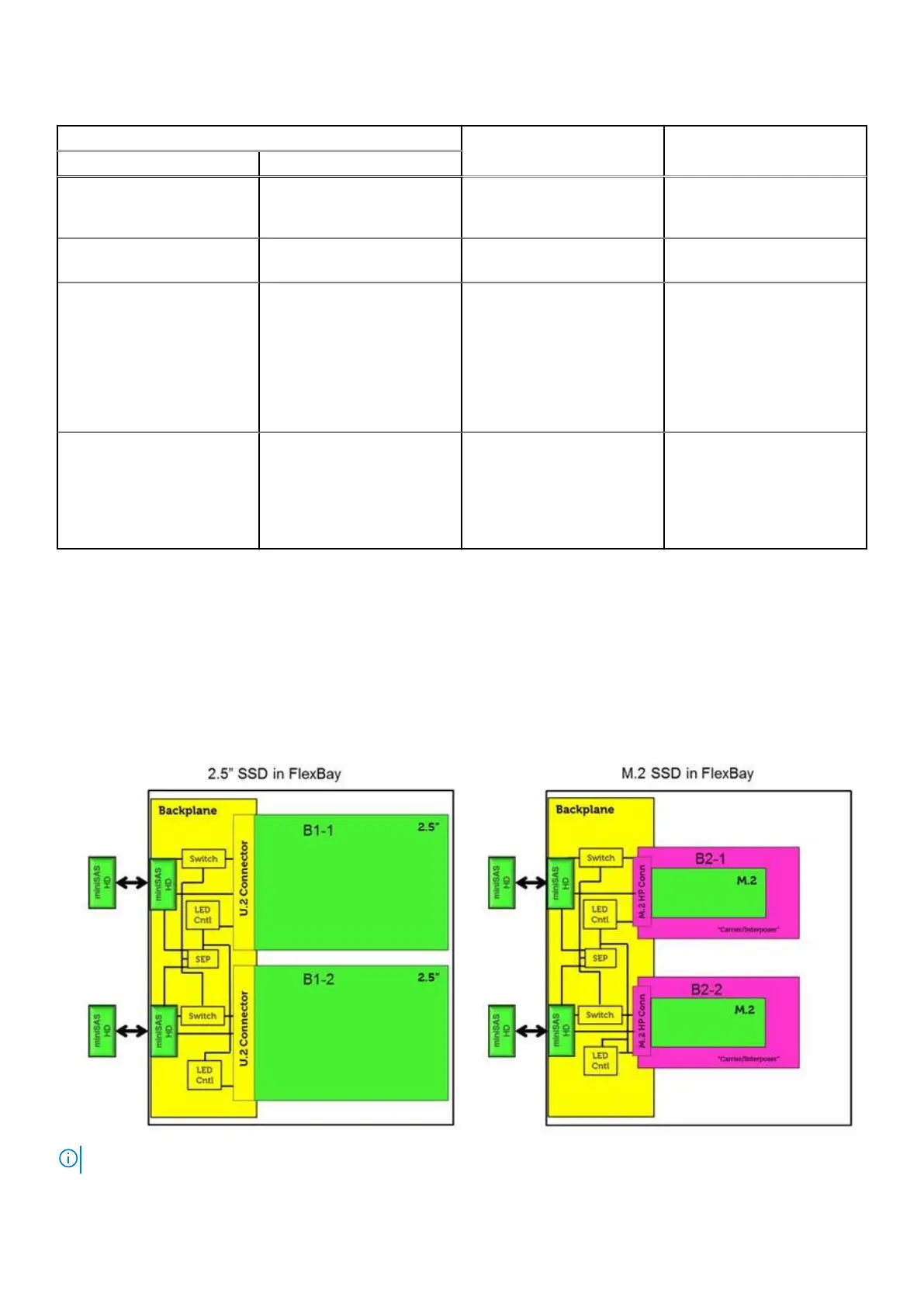

Table 22. Diagnostic LED behavior (continued)
Blinking pattern
Problem description Suggested resolutionAmber White
● Flash latest BIOS version.
If problem persists,
contact Tech Support
4 4 Riser board issue
● Power issue on Riser
second CPU board
4 6 RAID Volume degraded
● RAID volume is degraded.
● If you can assist to
troubleshoot, us F12
menu to enter Device
Configuration tab. Rebuild
the RAID volume if
possible
● Contact Tech Support.
4 7 System Side cover is missing
● System side cover(either
left or right) is missing.
● Unplug power, Install back
all side covers back to the
chassis and plug in power.
● Contact Tech Support.
Hard drive indicator codes
Each hard drive carrier has an activity LED indicator and a status LED indicator. The indicators provide information about the
current status of the hard drive. The activity LED indicator indicates whether the hard drive is currently in use or not. The status
LED indicator indicates the power condition of the drive.
Hard drive indicators
NOTE: LED status or activity indicators will only work with a backplane with each carriers shown below.
Troubleshooting 115
