Dell Precision Workstation 340 - Page 56



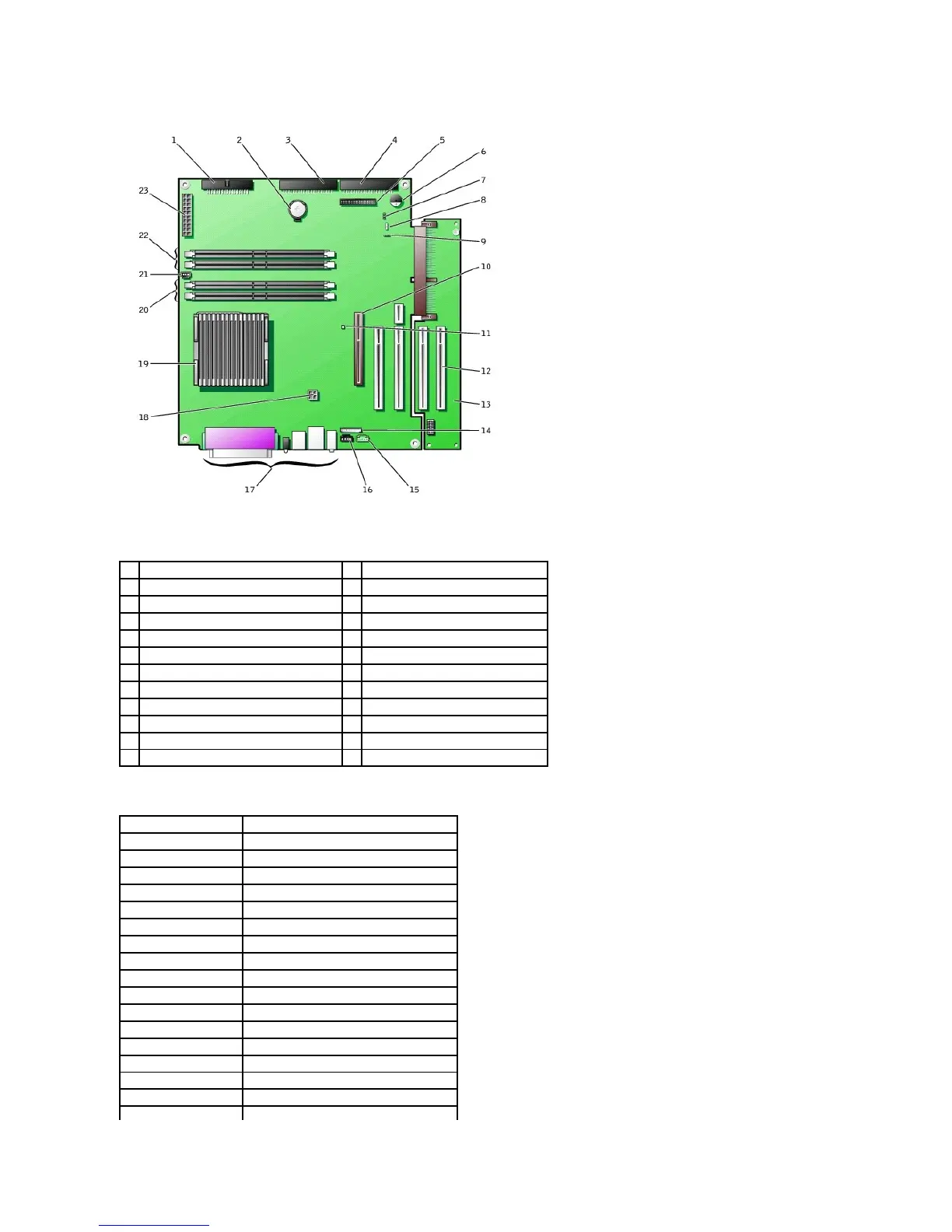

System Board Labels

1
floppy-drive connector (FLOPPY)
13
PCI riser board
2
battery
14
front-panel audio connector
3
removable-media drive connector (IDE SEC)
15
telephony connector
4
hard-drive connector (IDE PRI)
16
CD audio connector
5
front panel connector
17
back panel connectors
6
system board speaker
18
microprocessor power connector
7
password jumper
19
microprocessor/heat sink assembly
8
auxiliary hard-drive activity light connector
20
memory module sockets (RIMM 1 and 2)
9
CLR CMOS jumper
21
fan power connector
10
AGP card connector
22
memory module sockets (RIMM 3 and 4)
11
standby power light
23
main power connector
12
PCI expansion-card connectors (4)


Connector or Component
Label
AGP
AGP card connector
AUDIO
Audio connectors
BATTERY
Battery socket
CD
CD audio connector
CLR CM
Clear CMOS jumper
CPU
Microprocessor/heat sink assembly
DIAG LED
Diagnostic lights
FAN1
Microprocessor fan connector
FLOPPY
Floppy-drive connector
FNT PNL
Front panel connector
FNT PNL AUDIO
Front-panel audio connector
KEY BRD_MOUSE
PS/2 keyboard and mouse connectors
MAIN POWER
Main power connector
PARALLEL
Parallel connector
PCIn
PCI expansion-card connector
IDE PRI
Hard drive connector secondary IDE connector
IDE SEC
Removable-media drive connector
