System Board Components
DellPrecision™WorkStation340ServiceManual

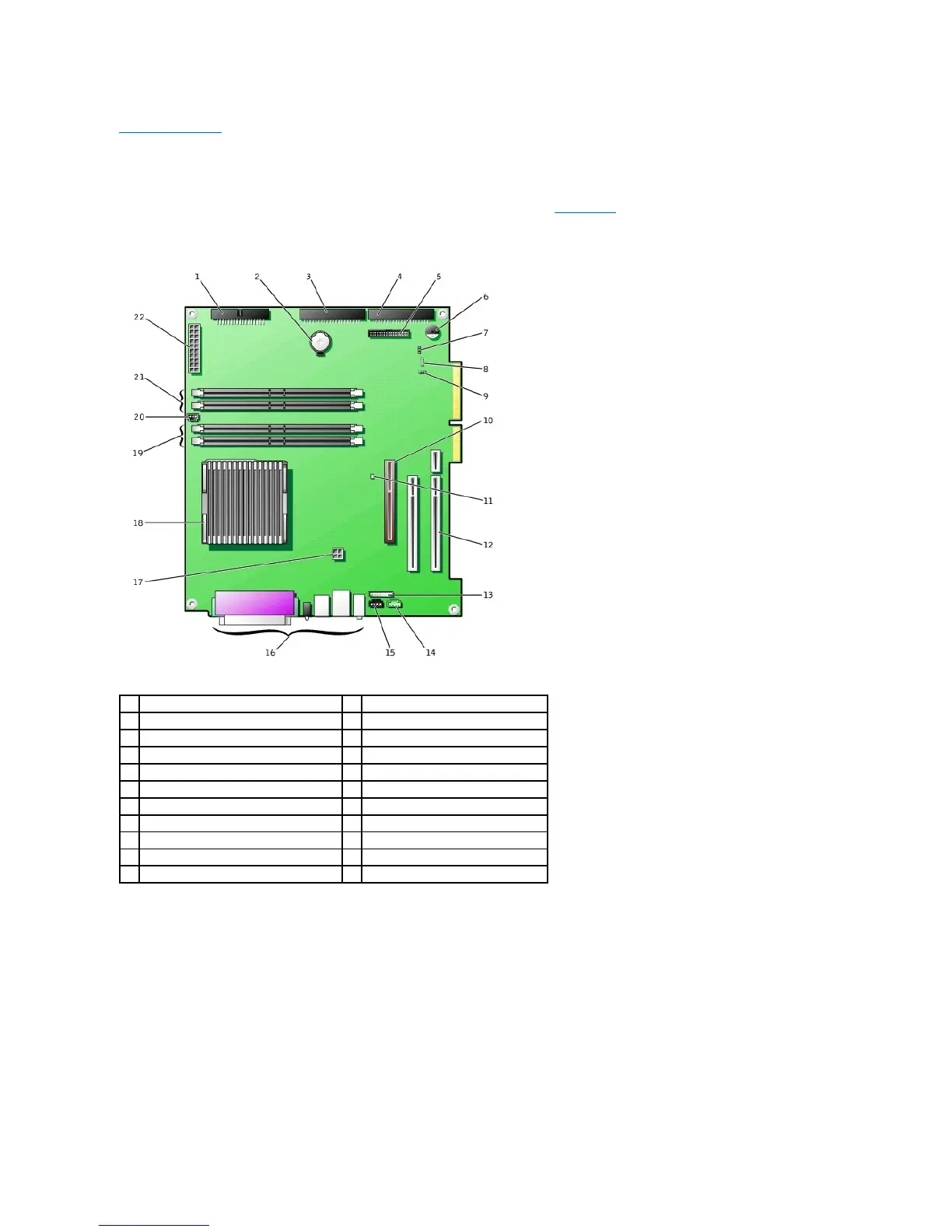

The following figures show the principal connectors and components on the system board. See "System Board" for information on removing the system board.
Small Desktop Computer


Mini-Tower Computer

1
floppy-drive connector (FLOPPY)
12
PCI expansion-card connectors(2)
2
battery
13
front-panel audio connector
3
removable-media drive connector (IDE SEC)
14
telephony connector
4
hard-drive connector (IDE PRI)
15
CD audio connector
5
front panel connector
16
back panel connectors
6
system board speaker
17
microprocessor power connector
7
password jumper
18
microprocessor/heat sink assembly
8
auxiliary hard-drive activity light connector
19
memory module sockets (RIMM 1 and 2)
9
CLR CMOS jumper
20
fan power connector
10
AGP card connector
21
memory module sockets (RIMM 3 and 4)
11
standby power light
22
main power connector
