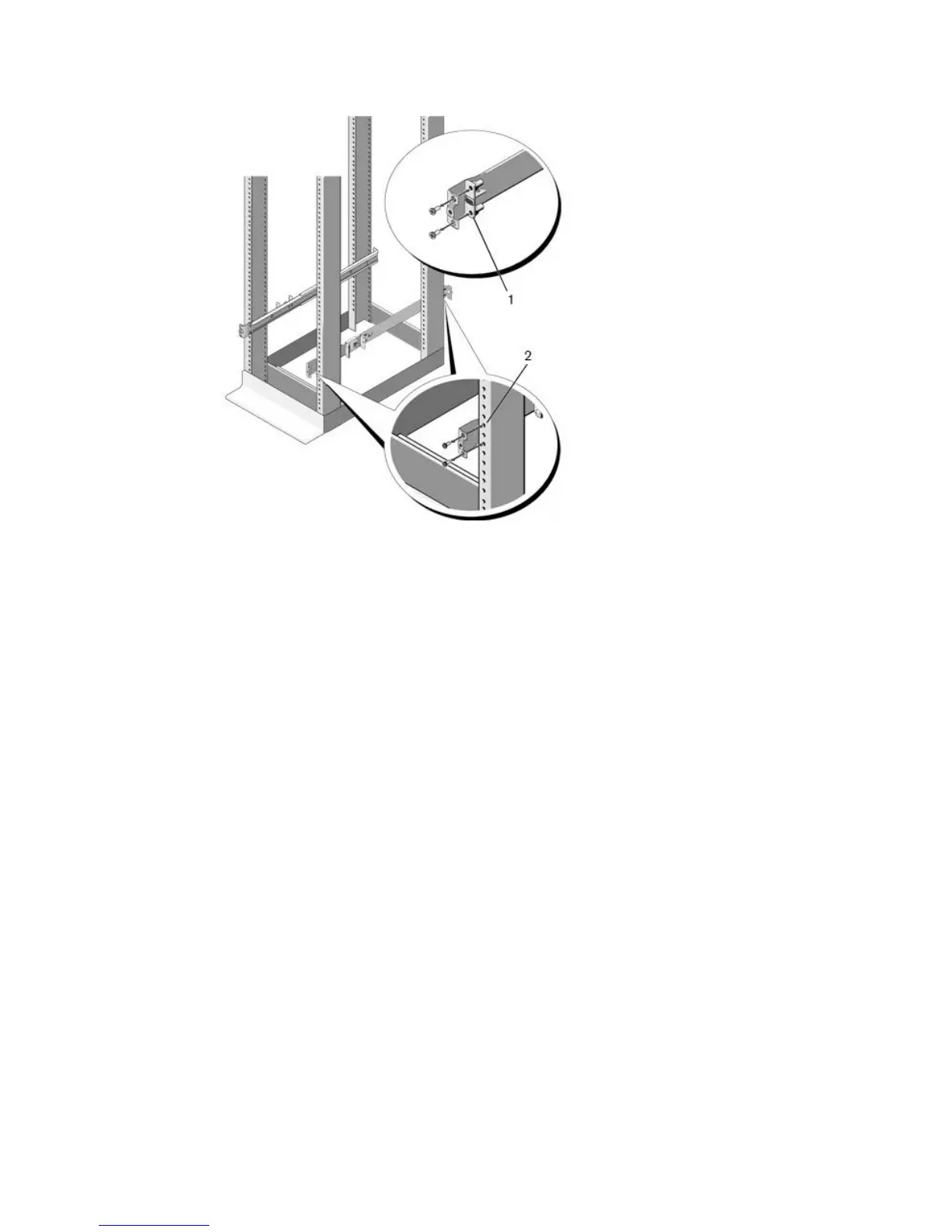

Figure 4. Four-Post Threaded Configuration
Install the S4048-ON System
You can mount the system in the 1U front-rack or 1U two-post (flush and center) configurations. The
following is an example of a front-rack configuration.
For the 1U two-post (flush and center) configurations, slide the system into the rails in the same manner
as the four-post configurations.
Installing a 1U Front-Rack
You must configure the rails that are attached to the system.
1. Attach the switch rails (inner chassis members) to the S4048–ON system. Item 3 in the following
illustration shows the detail for the front standoff with the locking tab.
Install the Hardware
9
