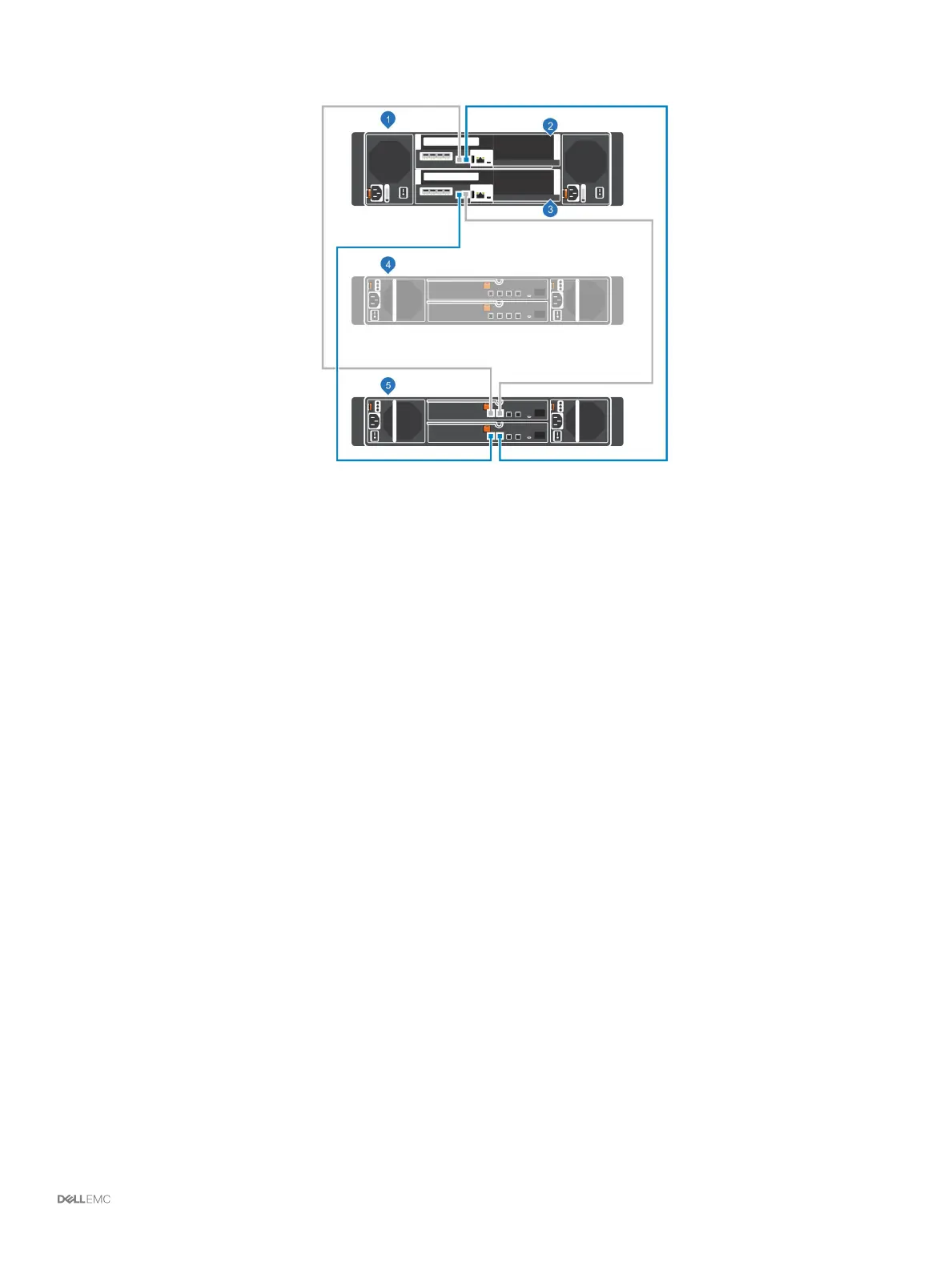

Figure 71. Reconnecting the B-Side Cable to the Remaining Expansion Enclosure
1
Storage system
2 Storage controller 1
3 Storage controller 2 4 Disconnected expansion enclosure
5 Expansion enclosure 1
Disconnect the SCv360 Expansion Enclosure from the A-Side
of the Chain
Disconnect the A-side cables from the expansion enclosure that you want to remove.
1 Disconnect the A-side cable (shown in orange) from expansion enclosure 1: left EMM, port 1. The B-side cables continue to carry I/O
while the A-side is disconnected.
2 Remove the A-side cable between expansion enclosure 1: left EMM, port 3 and expansion enclosure 2: left EMM, port 1.
