Dell SCv3020 Deployment Guide

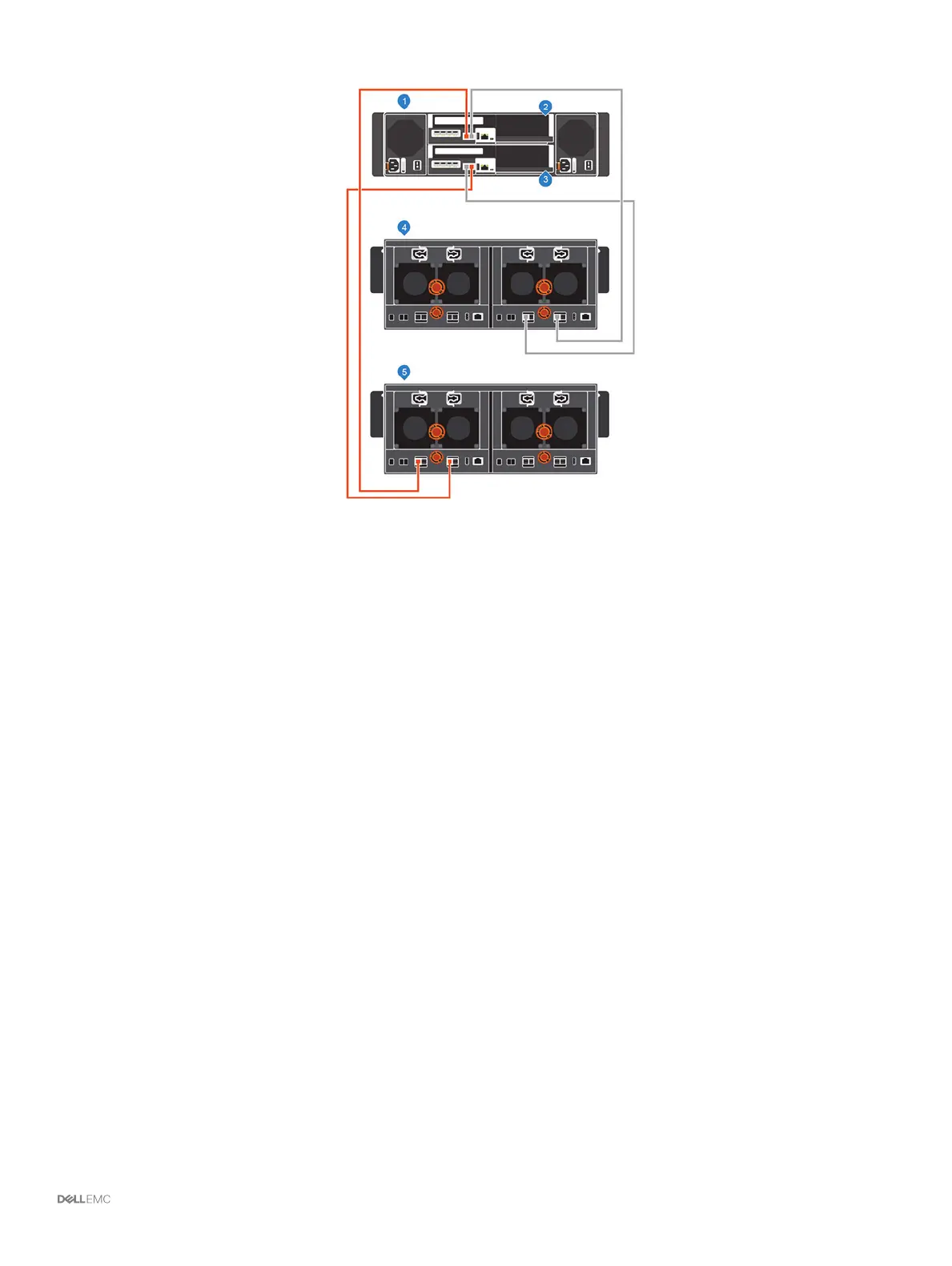

Figure 73. Reconnecting the A-Side Cable to the Remaining Expansion Enclosure
1
Storage system
2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 Expansion enclosure 2
Disconnect the SCv360 Expansion Enclosure from the B-Side
of the Chain
Disconnect the B-side cables from the expansion enclosure that you want to remove.
1 Disconnect the B-side cable (shown in blue) from expansion enclosure 1: right EMM, port 1. The A-side cables continue to carry I/O
while the B-side is disconnected.
2 Remove the B-side cable between expansion enclosure 1: right EMM, port 3 and expansion enclosure 2: right EMM, port 1.
Adding or Removing Expansion Enclosures
91

Dell SCv3020 Specifications

General

Controller	Dual controllers
RAID Support	RAID 0, 1, 5, 6, 10
Product Type	Storage array
Processor	Intel Xeon
Form Factor	2U
Maximum Capacity	460TB
Memory	64GB per controller
Connectivity	iSCSI, Fibre Channel, SAS
Power Supply	Dual, hot-plug, redundant power supply (1+1)
Drive Support	SAS
Protocols	iSCSI, FC
Operating System	Storage Center Operating System (SCOS)
